Carbide Insert, Grade 1030, TiAlN - Sandvik Coromant 5758368

Sandvik Coromant

Carbide Insert, Grade 1030, TiAlN - Sandvik Coromant 5758368

MFR# 5758368Series 316

$119.58List $153.36 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
Grade1030
CoatingTiAlN

Description

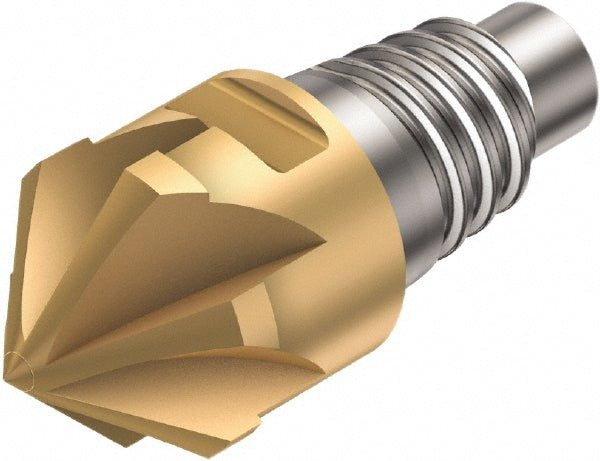

The Sandvik Coromant 5758368 is a carbide indexable insert, grade 1030, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.

Specifications

Chamfer angle45.000
ChipbreakerStraight
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0000
Cutting diameter0.3937
Cutting width0.3937
Functional length0.4587
Helix angle0
Included angle degree90
Insert handRight Hand
Insert size10CM400
Lead angle45
Length of cut0.1673
Manufacturers catalog number5758368
Manufacturer grade1030
Material gradeP30; P40; P50; M30; M40; N10; N20; S10; S20
Maximum depth of cut0.1673
Milling tip full description316-10CM400-10045G 1030
Milling tip style316..CM.
Milling tip typeChamfer
Number of flutes4
Overall length0.4587
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
StandardsANSI
Tool materialCarbide
