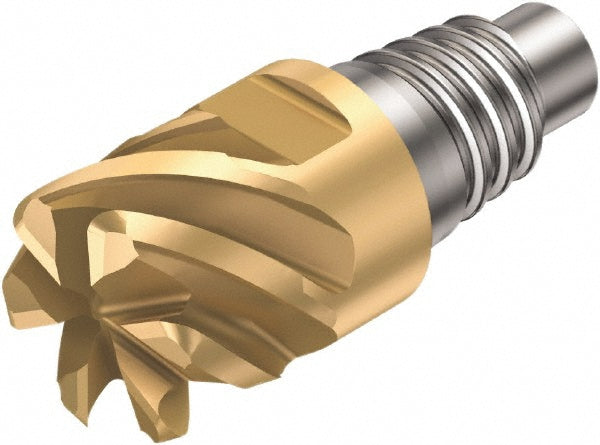

Carbide Insert, Grade 1030, TiAlN - Sandvik Coromant 5758376

Sandvik Coromant

Carbide Insert, Grade 1030, TiAlN - Sandvik Coromant 5758376

MFR# 5758376Series 316

$109.47List $140.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes6
Grade1030
CoatingTiAlN

Description

The Sandvik Coromant 5758376 is a carbide indexable insert, grade 1030, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.

Specifications

Chamfer angle0.000
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0000
Cutting diameter0.3937
Cutting width0.3937
Functional length0.4882
Helix angle50
Included angle degree90
Insert handRight Hand
Insert size10FM650
Lead angle90
Length of cut0.2165
Manufacturers catalog number5758376
Manufacturer grade1030
Material gradeP30; P40; P50; M30; M40; N10; N20; S10; S20
Maximum depth of cut0.2165
Milling tip full description316-10FM650-10000L 1030
Milling tip style316-FM
Milling tip typeChamfer
Number of flutes6
Overall length0.4882
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
StandardsANSI
Tool materialCarbide
