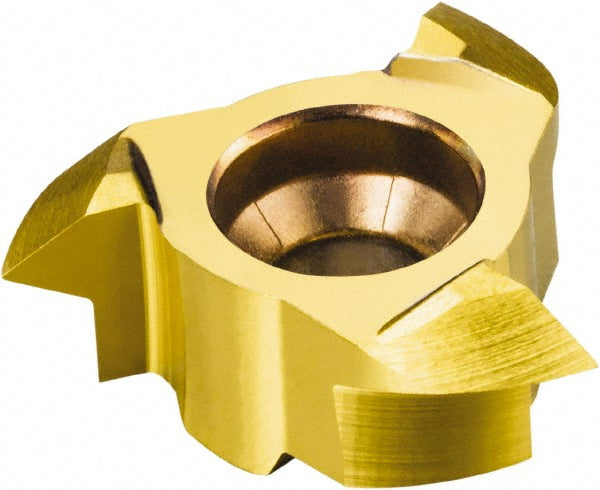

Carbide Insert, Grade 1025, TiAlN - Sandvik Coromant 5758648

Sandvik Coromant

Carbide Insert, Grade 1025, TiAlN - Sandvik Coromant 5758648

MFR# 5758648Series 327

$106.11List $136.08 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
Grade1025
CoatingTiAlN

Description

The Sandvik Coromant 5758648 is a carbide indexable insert, grade 1025, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium.

Specifications

ChipbreakerCommon
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0000
Cutting diameter0.8543
Cutting width0.8543
Functional length0.1811
Helix angle0
Included angle degree60
Insert handRight Hand
Insert sizeR12-22 100VM
Lead angle90
Length of cut in3/64
Manufacturers catalog number5758648
Manufacturer grade1025
Material gradeP10; P20; P30; M10; M20; S10; S20; N10; N20
Milling tip full description327R12-22 100VM-TH 1025
Milling tip style327
Milling tip typeThread
Number of flutes3
Overall length0.1811
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
StandardsANSI
Tool materialCarbide
