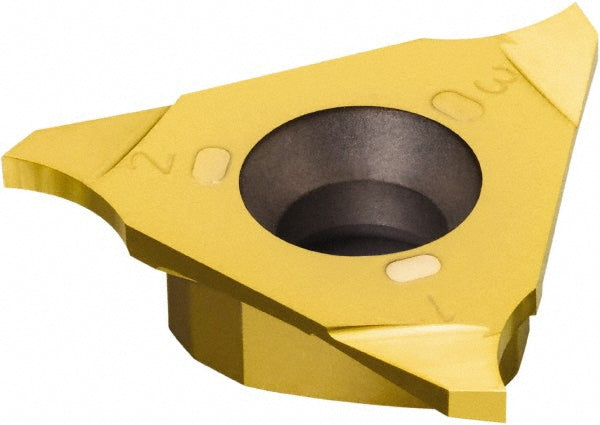

328R13-315 02-GM 1025 Solid Carbide Insert, Grade 1025, TiCN/TiN - Sandvik Coromant 5758753
MFR# 5758753ISO/ANSI# 328R13-315 02-GM 1025Cat# 328R13-315 02-GM 1025Series CoroMill 328
$74.11List $95.04
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1025
MaterialSolid Carbide
CoatingTiCN/TiN
Description
The Sandvik Coromant 5758753 is a 328R13-315 02-GM 1025 solid carbide indexable insert, grade 1025, TiCN/TiN coated.
Specifications
Chip breakerGM
Coating finishTiCN/TiN
Coating processPVD
Corner radius0.0600
Cutting width0.1240
Insert handRight Hand
Insert materialSolid Carbide
Insert size13
Insert style328-GM
Insert thickness0.1240
Iso code328R13-315 02-GM 1025
Lead angle0
Manufacturers catalog number328R13-315 02-GM 1025
Manufacturer grade1025
Maximum corner radius0.0060
Maximum depth of cut (mm)5.00
Maximum depth of cut range (mm)5.00 to 10.00
Minimum corner radius0.0060
RakeNeutral
Rake angle0.00
