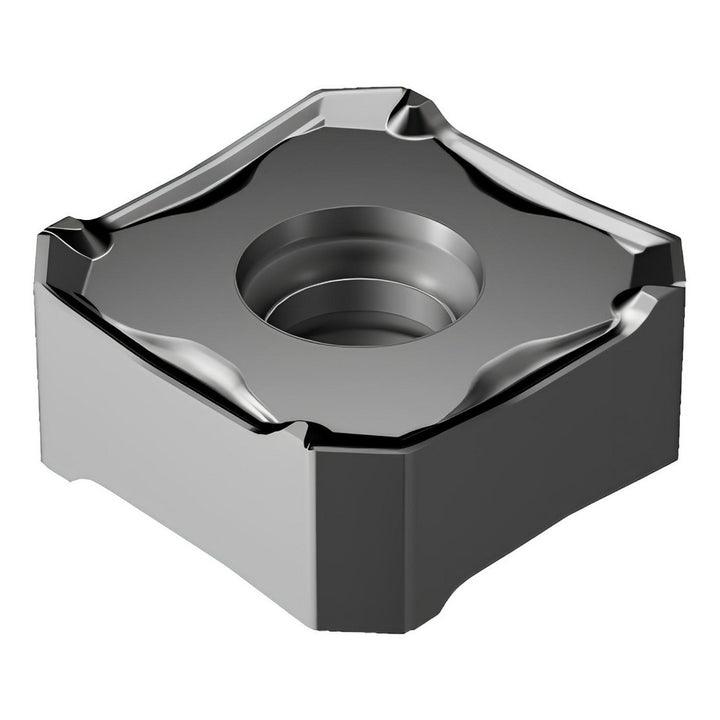

345R-1305M-PM 1010 Solid Carbide Insert, Grade 1010, TiAlN - Sandvik Coromant 5758916

Sandvik Coromant

345R-1305M-PM 1010 Solid Carbide Insert, Grade 1010, TiAlN - Sandvik Coromant 5758916

MFR# 5758916ISO/ANSI# 345R-1305M-PM 1010Cat# 345R-1305M-PM 1010Series 345

$28.71List $36.83 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
Grade1010
MaterialSolid Carbide
CoatingTiAlN

Description

The Sandvik Coromant 5758916 is a 345R-1305M-PM 1010 solid carbide indexable insert, grade 1010, TiAlN coated. Suited for cast iron, hard material.

Specifications

Ansi code345R-1305M-PM 1010
Chip breakerPM
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibility345
Cutting edge styleCorner Rounded
Hole diameter0.1890
Included angle degree90
Inscribed circle0.5118
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size13
Insert size code1305
Insert style345
Iso code345R-1305M-PM 1010
Length0.5118
Length range0.5000 to 0.6000
Manufacturers catalog number345R-1305M-PM 1010
Manufacturer grade1010
Material applicationCast Iron; Hard Material
Material gradeP10
Maximum depth of cut0.2362
Multi use toolYes
Number of cutting edges8
Primary workpiece materialCast Iron; Hard Material
RakeNegative
Rake angle24
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1988
Thickness range0.1850 to 0.2000
Width0.5118
