Sandvik Coromant

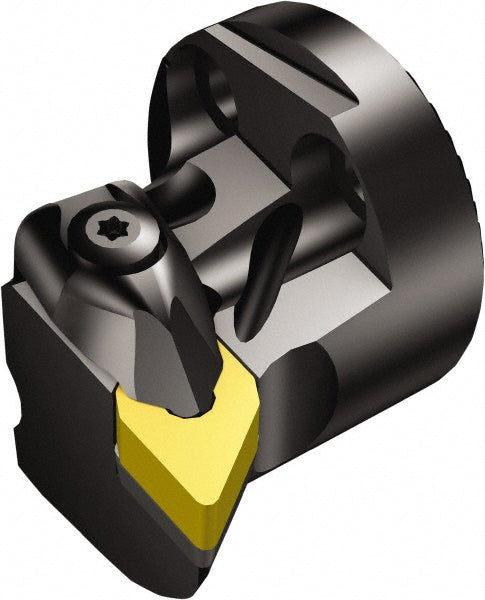

Indexable Turning & Profiling - Sandvik Coromant 5764247
MFR# 5764247Series T-Max P
$502.19List $533.52
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5764247 indexable turning & profiling. Series T-Max P.
Specifications
Axial rake angle-6.00
Center to cutting edge1.0630
Compatible insert styleDNMG 150608
Complete insert compatibilityDNMG 150608
Coolant throughYes
Cutting directionLeft Hand
Head connection size40
Head length projection1.2598
Insert holding methodWedge
Internal or externalInternal
Maximum hole depth1.2598
Minimum hole diameter1.9685
Neck diameter1.5748
Radial rake angle degrees-12
System size40
