Sandvik Coromant

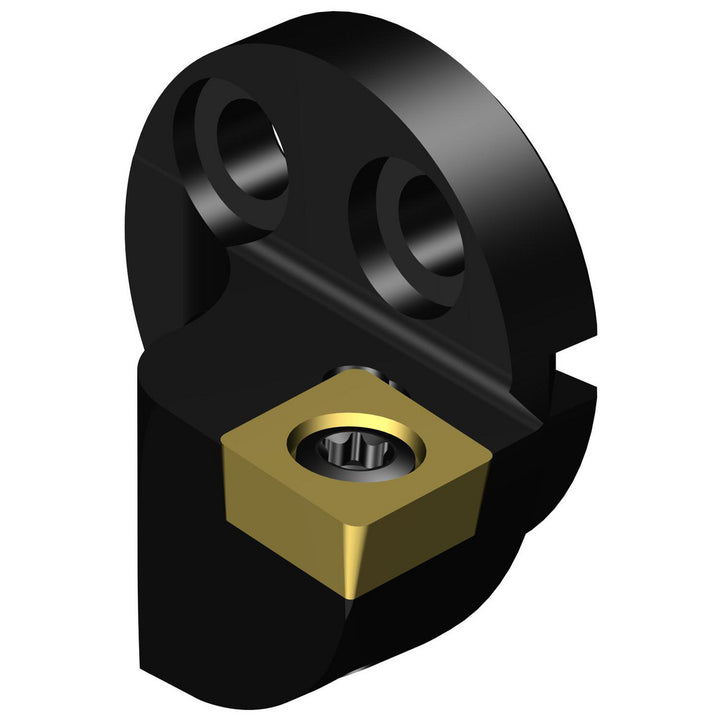

Indexable Turning & Profiling - Sandvik Coromant 5764333
MFR# 5764333Series CoroTurn 107
$463.57List $492.48
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5764333 indexable turning & profiling. Series CoroTurn 107.
Specifications
Axial rake angle0.00
Center to cutting edge0.6693
Compatible insert styleCCMT 09T308
Complete insert compatibilityCCMT 09T308
Coolant throughYes
Cutting directionRight Hand
Head connection size25
Head length projection0.7874
Insert holding methodClamp; Screw
Internal or externalInternal
Maximum hole depth0.7874
Minimum hole diameter1.2598
Neck diameter0.9843
Radial rake angle degrees-6
System size25
