Sandvik Coromant

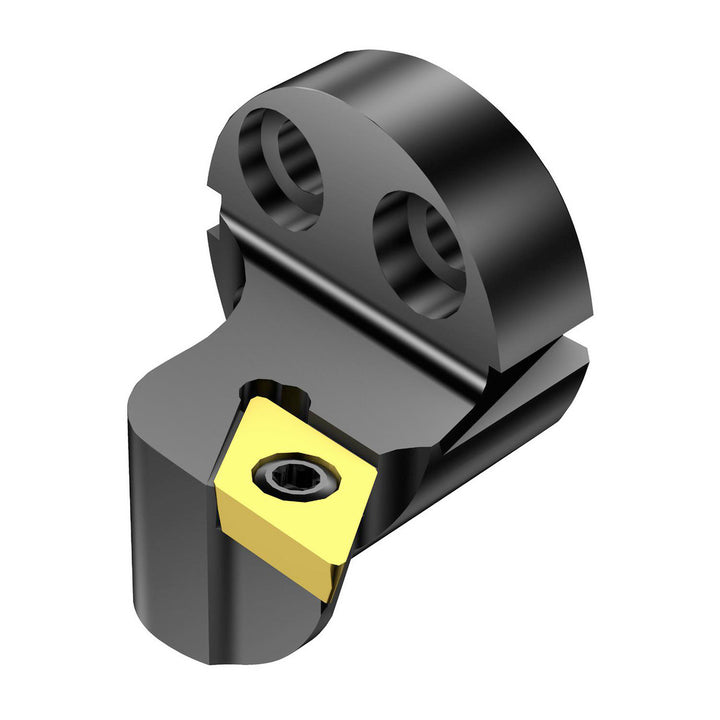

Indexable Turning & Profiling - Sandvik Coromant 5764381
MFR# 5764381Series CoroTurn 107
$502.19List $533.52
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5764381 indexable turning & profiling. Series CoroTurn 107.
Specifications
Axial rake angle0.00
Center to cutting edge1.0630
Compatible insert styleDCMT 11T308
Complete insert compatibilityDCMT 11T308
Coolant throughYes
Cutting directionRight Hand
Head connection size20
Head length projection1.2598
Insert holding methodClamp; Screw
Internal or externalInternal
Maximum hole depth1.2598
Minimum hole diameter1.9685
Neck diameter1.5748
Radial rake angle degrees-8
System size40
