Sandvik Coromant

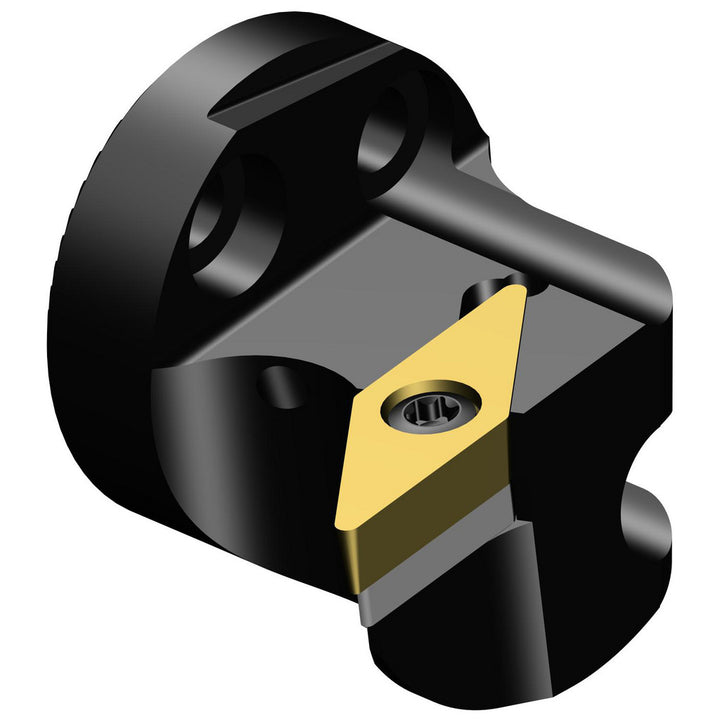

Indexable Turning & Profiling - Sandvik Coromant 5764409
MFR# 5764409Series CoroTurn 107
$483.90List $514.08
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5764409 indexable turning & profiling. Series CoroTurn 107.
Specifications
Axial rake angle0.00
Center to cutting edge0.8661
Compatible insert styleVBMT 160408
Complete insert compatibilityVBMT 160408
Coolant throughYes
Cutting directionLeft Hand
Head connection sizeC4
Head length projection1.2598
Insert holding methodClamp; Screw
Internal or externalInternal
Maximum hole depth1.2598
Minimum hole diameter1.5748
Neck diameter1.2598
Radial rake angle degrees-9
System size32
