Sandvik Coromant

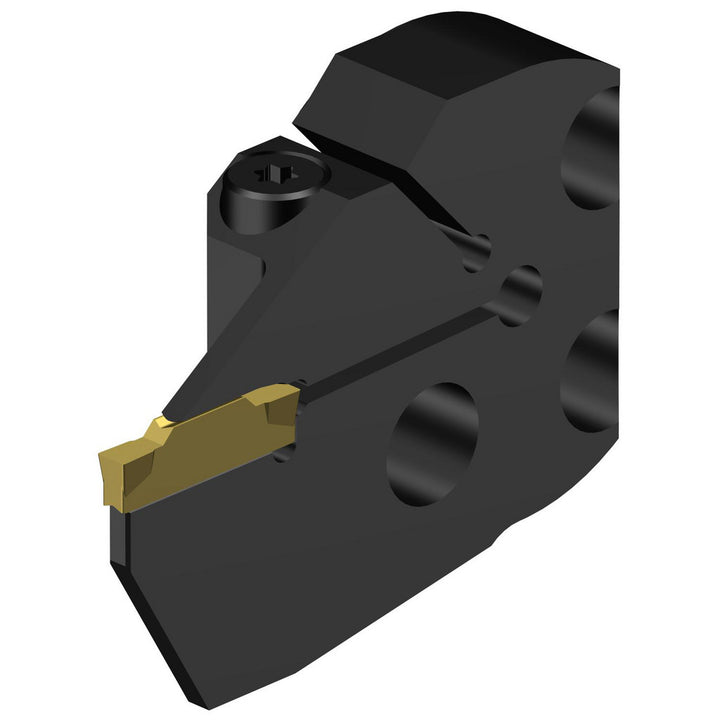

Indexable Grooving - Sandvik Coromant 5765143
MFR# 5765143Series CoroCut 1-2
$230.77List $245.16
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5765143 indexable grooving. Series CoroCut 1-2.
Specifications
Center to cutting edge1.7756
Compatible insert size codeG
Compatible insert styleN123
Complete insert compatibilityN123G2-0300-GM
Coolant throughYes
Cutting directionLeft Hand
Head length projection0.5512
Maximum depth of cut101.6000
Maximum groove width0.7087
Minimum groove width76.2000
Modular head styleCutting Head
System size40
