Sandvik Coromant

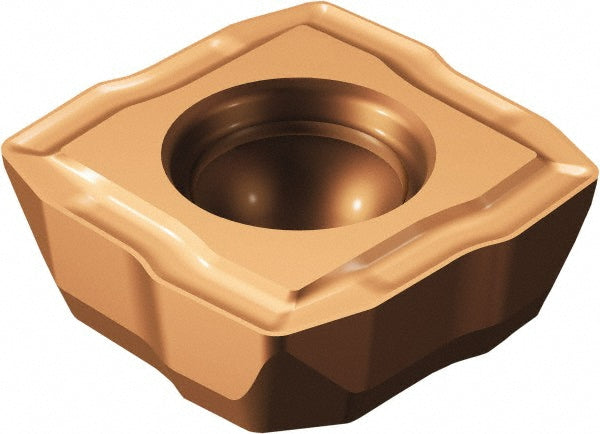

0.2677" IC Solid Carbide Insert, Grade 1044, TiAlN - Sandvik Coromant 5765717
MFR# 5765717
$21.47List $27.54
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1044
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5765717 is a solid carbide indexable insert, grade 1044, TiAlN coated.
Specifications
ChipbreakerGR
Coating finishTiAlN
Coating processPVD
Corner radius0.0197
Hole diameter0.0984
Inscribed circle0.2677
Insert materialSolid Carbide
Insert size04C
Insert style880
Length0.2677
Manufacturer grade1044
ShapeSquare
Thickness0.1102
Width0.2677
