Sandvik Coromant

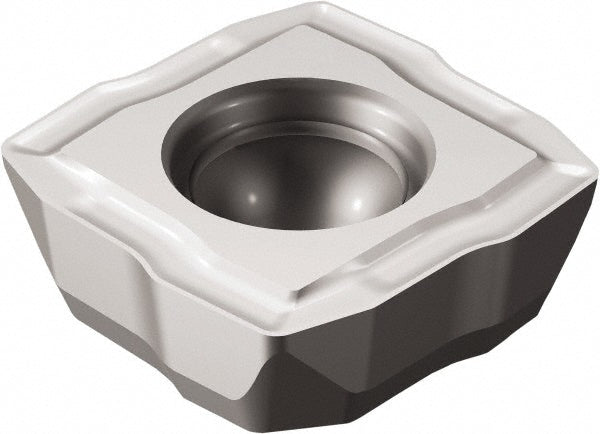

0.2677" IC Solid Carbide Insert, Grade H13A - Sandvik Coromant 5765718
MFR# 5765718
$17.98List $23.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeH13A
MaterialSolid Carbide
Description
The Sandvik Coromant 5765718 is a solid carbide indexable insert, grade H13A.
Specifications
ChipbreakerLM
Coating processUncoated
Corner radius0.0197
Hole diameter0.1102
Inscribed circle0.2677
Insert materialSolid Carbide
Insert size04C
Insert style880
Length0.2677
Manufacturer gradeH13A
ShapeSquare
Thickness0.1102
Width0.2677
