Sandvik Coromant

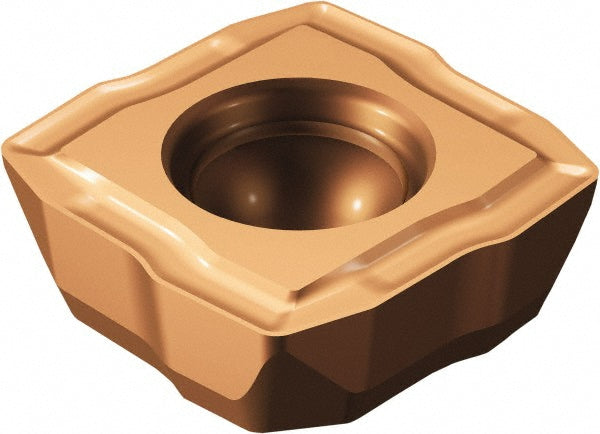

0.3307" IC Solid Carbide Insert, Grade 1144, TiAlN - Sandvik Coromant 5765756
MFR# 5765756
$26.35List $33.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1144
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5765756 is a solid carbide indexable insert, grade 1144, TiAlN coated.
Specifications
ChipbreakerLM
Coating finishTiAlN
Coating processPVD
Corner radius0.0197
Cutting directionRight Hand
Hole diameter0.1260
Inscribed circle0.3307
Insert materialSolid Carbide
Insert size05C
Insert style880
Length0.3307
Manufacturer grade1144
ShapeSquare
Thickness0.1181
Width0.3307
