Sandvik Coromant

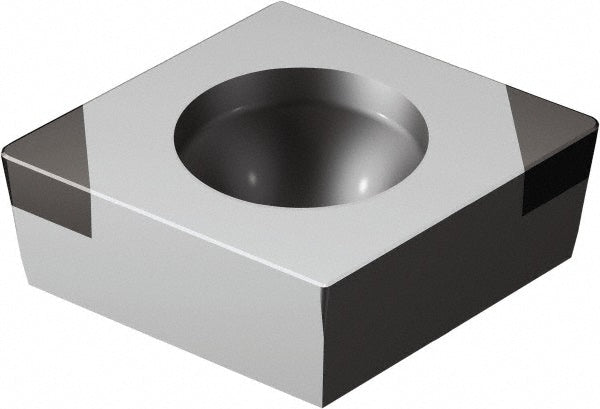

CCGW060204S01030F 7025 Carbide Insert, Grade 7025 - Sandvik Coromant 5781749
MFR# 5781749ISO/ANSI# CCGW060204S01030F 7025
$76.72List $98.39
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade7025
MaterialCarbide
Description
The Sandvik Coromant 5781749 is a CCGW060204S01030F 7025 carbide indexable insert, grade 7025.
Specifications
Chip breakerW
Clearance codeC
Corner radius in1/64
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.1102
Insert materialCarbide
Insert shapeDiamond
Insert size code21.51
Insert styleCCGW
Insert thickness in3/32
Iso codeCCGW060204S01030F 7025
Length range0.0000 - 0.3000
Manufacturer grade7025
Relief angle7
Tolerance codeG
