Sandvik Coromant

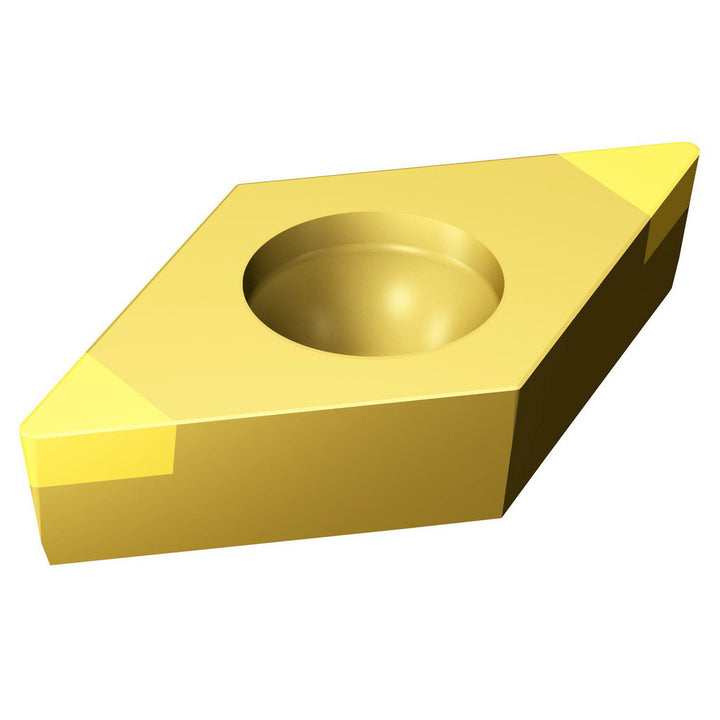

DCGW070204S01030F 7015 Carbide Insert, Grade 7015, TiN - Sandvik Coromant 5781780
MFR# 5781780ISO/ANSI# DCGW070204S01030F 7015Series CoroTurn 107
$76.72List $98.39
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade7015
MaterialCarbide
CoatingTiN
Description
The Sandvik Coromant 5781780 is a DCGW070204S01030F 7015 carbide indexable insert, grade 7015, TiN coated. Suited for hard material.
Specifications
Chip breakerW
Clearance codeC
Coating finishTiN
Coating processPVD
Corner radius in1/64
Hole diameter0.1102
Included angle55
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.1142
Insert materialCarbide
Insert shapeDiamond
Insert size code21.51
Insert styleDCGW
Insert thickness in3/32
Iso codeDCGW070204S01030F 7015
Length range0.0000 - 0.3000
Manufacturer grade7015
Number of cutting edges2
Primary workpiece materialHard Material
Relief angle7
Tolerance codeG
Wiper edgeNo
