Sandvik Coromant
TLGP-2047L 1125 Solid Carbide Insert, Grade 1125, TiCrAlN - Sandvik Coromant 5846582
MFR# 5846582ISO/ANSI# TLGP-2047L 1125Cat# TLGP-2047L 1125Series Top Lok
$35.55List $45.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
CoatingTiCrAlN
Description

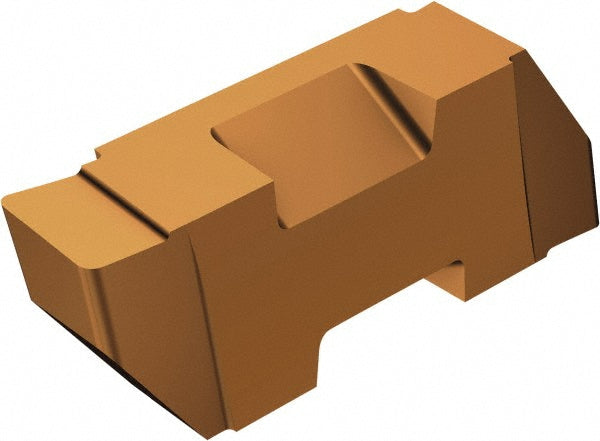

The Sandvik Coromant 5846582 is a TLGP-2047L 1125 solid carbide indexable insert, grade 1125, TiCrAlN coated.
Specifications
Coating finishTiCrAlN
Coating processPVD
Corner radius0.0035
Cutting height0.2190
Cutting width0.0470
Insert handLeft Hand
Insert materialSolid Carbide
Insert seat size2
Insert size2
Insert styleTLGP
Insert thickness0.2190
Iso codeTLGP-2047L 1125
Manufacturers catalog numberTLGP-2047L 1125
Manufacturer grade1125
Maximum corner radius0.0035
Maximum depth of cut0.0500
Maximum depth of cut range0.0000 to 0.0750
Minimum corner radius0.0035
Multi use toolYes
Overall length0.3441
Overall width0.0470
RakeNeutral
Rake angle10.00
