Sandvik Coromant

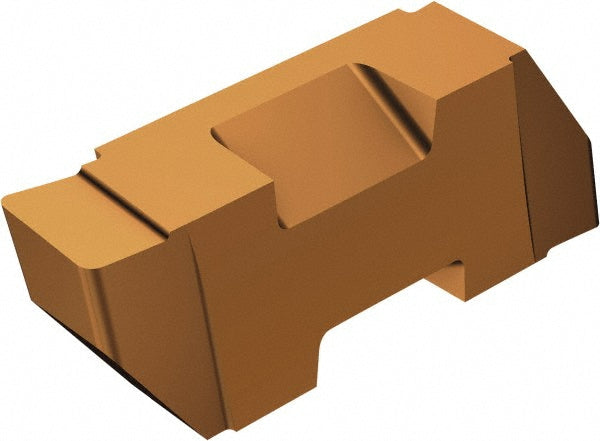

TLGP3178R1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5846594
MFR# 5846594ISO/ANSI# TLGP3178R1125Series Top Lok
$38.67List $49.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5846594 is a TLGP3178R1125 carbide indexable insert, grade 1125, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0075
Cutting width0.178
Insert handRight Hand
Insert materialCarbide
Insert size3178
Insert styleTLGP
Insert thickness0.3440
Iso codeTLGP3178R1125
Manufacturers catalog number5846594
Manufacturer grade1125
Maximum depth of cut0.1500
Maximum depth of cut range0.1500 to 0.2000
Multi use toolYes
Rake angle10
