Sandvik Coromant
TLR-3078R 1125 Solid Carbide Insert, TiAlN - Sandvik Coromant 5846599
MFR# 5846599ISO/ANSI# TLR-3078R 1125Cat# TLR-3078R 1125Series Top Lok
$42.80List $54.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
MaterialSolid Carbide
CoatingTiAlN
Description

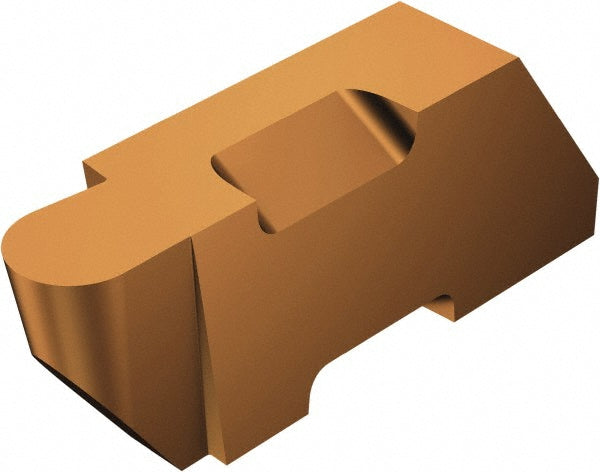

The Sandvik Coromant 5846599 is a TLR-3078R 1125 solid carbide indexable insert, TiAlN coated.
Specifications
Chip breakerTLR
Coating finishTiAlN
Coating processPVD
Corner radius0.0780
Cutting height0.3440
Cutting width0.1560
Insert handRight Hand
Insert materialSolid Carbide
Insert seat size3
Insert size3R
Insert styleTLR
Insert thickness0.3440
Iso codeTLR-3078R 1125
Manufacturers catalog numberTLR-3078R 1125
Maximum depth of cut0.1500
Maximum depth of cut range0.1500 to 0.2000
Minimum corner radius0.0780
Multi use toolYes
Overall width0.1560
RakePositive
