Sandvik Coromant
TLR-3094R 1125 Solid Carbide Insert, TiAlN - Sandvik Coromant 5846601
MFR# 5846601ISO/ANSI# TLR-3094R 1125Cat# TLR-3094R 1125Series Top Lok
$42.73List $54.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
MaterialSolid Carbide
CoatingTiAlN
Description

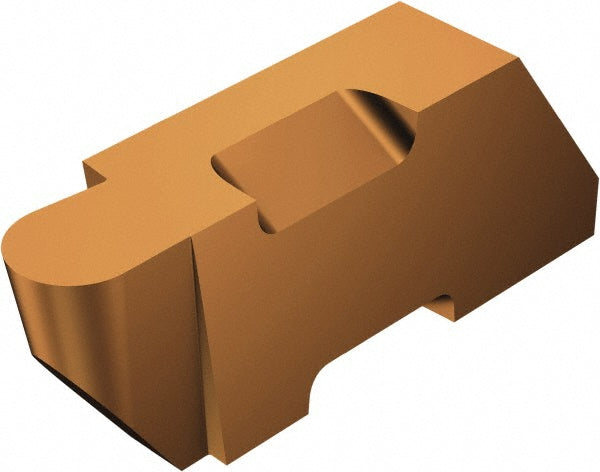

The Sandvik Coromant 5846601 is a TLR-3094R 1125 solid carbide indexable insert, TiAlN coated.
Specifications
Chip breakerTLR
Coating finishTiAlN
Coating processPVD
Corner radius0.0940
Cutting height0.3440
Cutting width0.1880
Insert handRight Hand
Insert materialSolid Carbide
Insert seat size3
Insert size3R
Insert styleTLR
Insert thickness0.3440
Iso codeTLR-3094R 1125
Manufacturers catalog numberTLR-3094R 1125
Maximum depth of cut0.1500
Maximum depth of cut range0.1500 to 0.2000
Minimum corner radius0.0940
Multi use toolYes
Overall width0.1880
RakePositive
