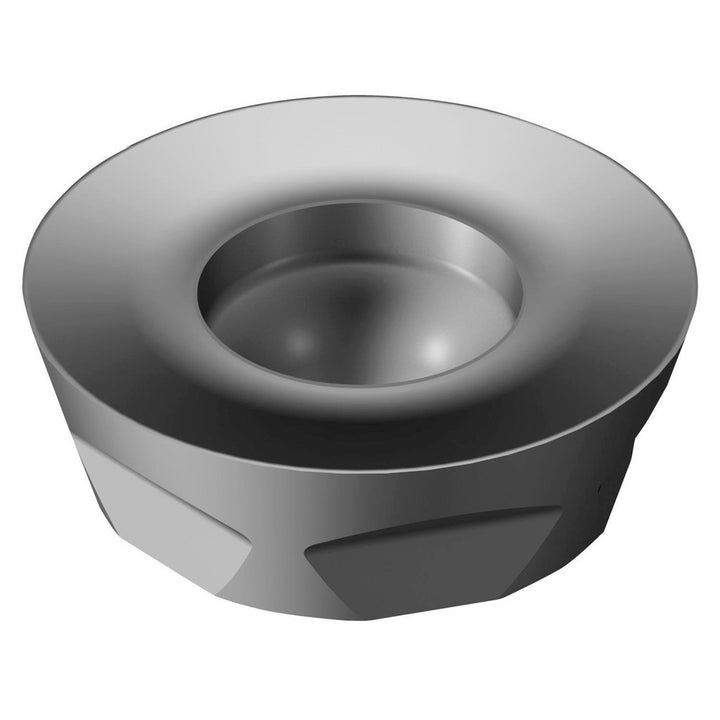

R300-1340M-PM S30T Solid Carbide Insert, Grade S30T, TiAlN - Sandvik Coromant 5853446

Sandvik Coromant

R300-1340M-PM S30T Solid Carbide Insert, Grade S30T, TiAlN - Sandvik Coromant 5853446

MFR# 5853446ISO/ANSI# R300-1340M-PM S30TCat# R300-1340M-PM S30TSeries R300

$16.29List $20.90 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeRound
GradeS30T
MaterialSolid Carbide
CoatingTiAlN

Description

The Sandvik Coromant 5853446 is a R300-1340M-PM S30T solid carbide indexable insert, grade S30T, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi codeR300-1340M-PM S30T
Chip breakerPM
Coating finishTiAlN
Coating processPVD
Convex radius0.2500
Corner radius in1/4
Cutter series compatibilityRA300
Cutting edge styleRounded
Hole diameter0.1614
Included angle degree360
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size13
Insert size code1340
Insert styleR300
Iso codeR300-1340M-PM S30T
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberR300-1340M-PM S30T
Manufacturer gradeS30T
Material applicationStainless Steel; Superalloys & Titanium
Material gradeM25; S25
Maximum depth of cut0.1252
Multi use toolYes
Number of cutting edges6
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle20
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width in1/2
