Sandvik Coromant

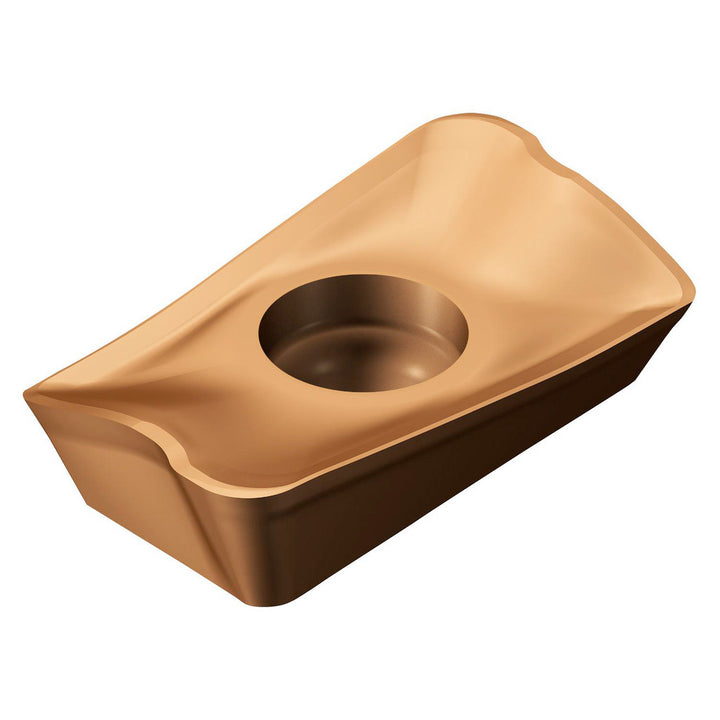

R390-11 T3 16E-ML S30T Solid Carbide Insert, Grade S30T, TiAlN - Sandvik Coromant 5853472
MFR# 5853472ISO/ANSI# R390-11 T3 16E-ML S30TCat# R390-11 T3 16E-ML S30TSeries R390
$32.00List $41.04
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeS30T
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5853472 is a R390-11 T3 16E-ML S30T solid carbide indexable insert, grade S30T, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi codeR390-11 T3 16E-ML S30T
Chip breakerML
Coating finishTiAlN
Coating processPVD
Corner radius0.0630
Cutter series compatibilityM-32; R390
Cutting edge styleCorner Rounded
Hole diameter0.1102
Included angle degree90
Inscribed circle0.2677
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size11
Insert size code11T316
Insert styleR390
Iso codeR390-11 T3 16E-ML S30T
Length0.3937
Length range0.3200 to 0.4000
Manufacturers catalog numberR390-11 T3 16E-ML S30T
Manufacturer gradeS30T
Material applicationStainless Steel; Superalloys & Titanium
Material gradeM25; S25
Maximum depth of cut0.3937
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle20
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1413
Thickness range0.1250 to 0.1500
Width0.2677
