Sandvik Coromant

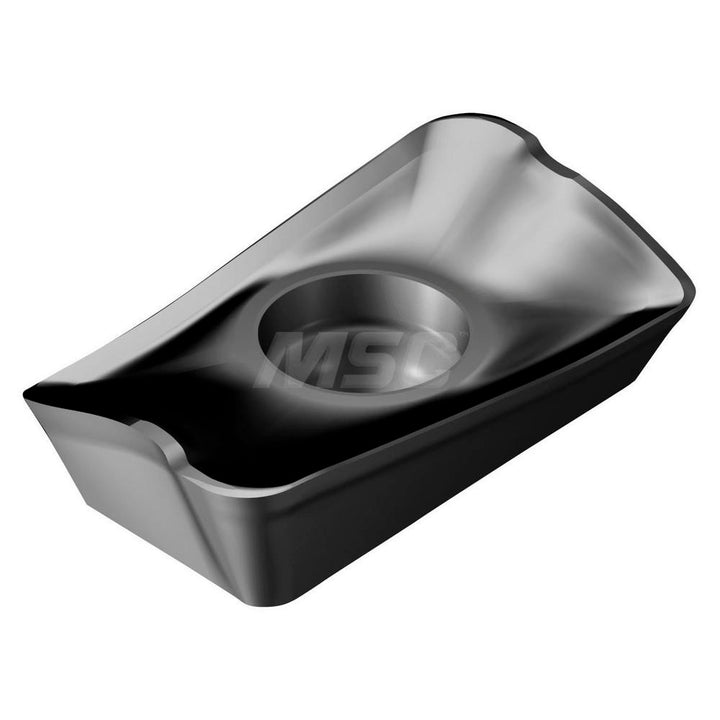

R390-17 04 31E-PM S30T Solid Carbide Insert, Grade S30T, TiAlN - Sandvik Coromant 5853501
MFR# 5853501ISO/ANSI# R390-17 04 31E-PM S30TCat# R390-17 04 31E-PM S30TSeries R390
$36.76List $47.14
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeS30T
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5853501 is a R390-17 04 31E-PM S30T solid carbide indexable insert, grade S30T, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi codeR390-17 04 31E-PM S30T
Chip breakerPM
Coating finishTiAlN
Coating processPVD
Corner radius0.1220
Cutter series compatibilityR390
Cutting edge styleCorner Rounded
Hole diameter0.1614
Included angle degree90
Inscribed circle0.3780
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size17
Insert size code170431
Insert styleR390
Iso codeR390-17 04 31E-PM S30T
Length0.6181
Length range0.6000 to 0.6500
Manufacturers catalog numberR390-17 04 31E-PM S30T
Manufacturer gradeS30T
Material applicationStainless Steel; Superalloys & Titanium
Material gradeM25; S25
Maximum depth of cut0.6181
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle22
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.3780
