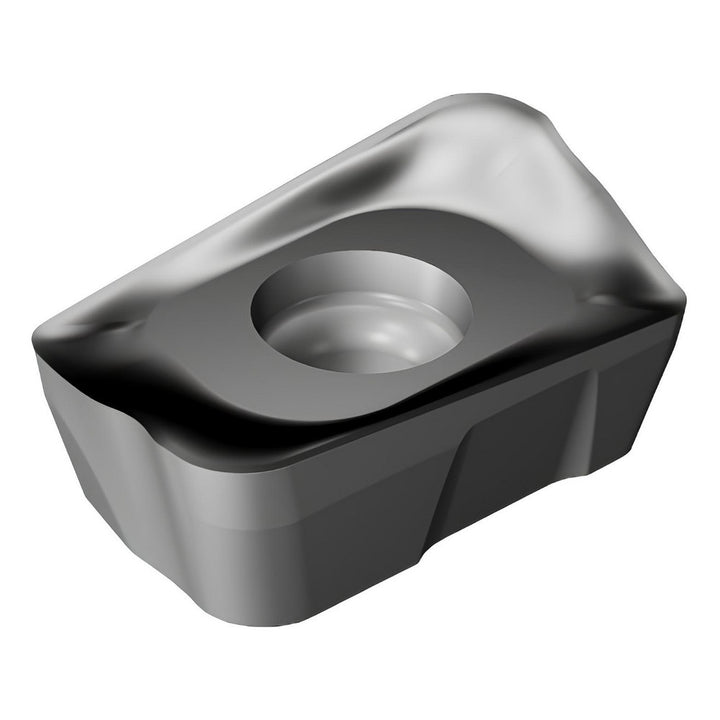

R390-18 06 12M-PMR S30T Solid Carbide Insert, Grade S30T, TiAlN - Sandvik Coromant 5853528

Sandvik Coromant

R390-18 06 12M-PMR S30T Solid Carbide Insert, Grade S30T, TiAlN - Sandvik Coromant 5853528

MFR# 5853528ISO/ANSI# R390-18 06 12M-PMR S30TCat# R390-18 06 12M-PMR S30TSeries R390

$29.30List $37.58 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeS30T
MaterialSolid Carbide
CoatingTiAlN

Description

The Sandvik Coromant 5853528 is a R390-18 06 12M-PMR S30T solid carbide indexable insert, grade S30T, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi codeR390-18 06 12M-PMR S30T
Chip breakerPMR
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityM-40; R390
Cutting edge styleCorner Rounded
Hole diameter0.1634
Included angle degree90
Inscribed circle0.4331
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code180612
Insert styleR390
Iso codeR390-18 06 12M-PMR S30T
Length0.6063
Length range0.6000 to 0.6500
Manufacturers catalog numberR390-18 06 12M-PMR S30T
Manufacturer gradeS30T
Material applicationStainless Steel; Superalloys & Titanium
Material gradeM25; S25
Maximum depth of cut0.6693
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2492
Thickness range0.2350 to 0.2500
Width0.4331
