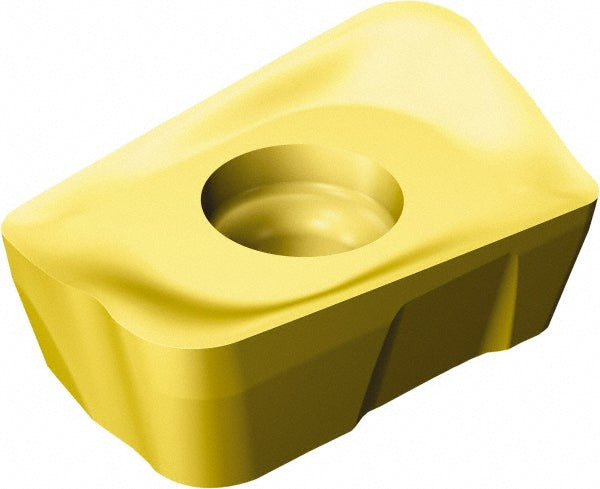

R390-18 06 31M-PM S40T Solid Carbide Insert, Grade S40T, TiCrN - Sandvik Coromant 5853536
MFR# 5853536ISO/ANSI# R390-18 06 31M-PM S40TCat# R390-18 06 31M-PM S40TSeries R390
$32.45List $41.63
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeS40T
MaterialSolid Carbide
CoatingTiCrN
Description
The Sandvik Coromant 5853536 is a R390-18 06 31M-PM S40T solid carbide indexable insert, grade S40T, TiCrN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi codeR390-18 06 31M-PM S40T
Chip breakerPM
Coating finishTiCrN
Coating processCVD
Corner radius0.1220
Cutter series compatibilityM-40; R390
Cutting edge styleCorner Rounded
Hole diameter0.1634
Included angle degree90
Inscribed circle0.4331
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code180631
Insert styleR390
Iso codeR390-18 06 31M-PM S40T
Length0.6063
Length range0.6000 to 0.6500
Manufacturers catalog numberR390-18 06 31M-PM S40T
Manufacturer gradeS40T
Material applicationStainless Steel; Superalloys & Titanium
Material gradeM40; S35
Maximum depth of cut0.6299
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2492
Thickness range0.2350 to 0.2500
Width0.4331
