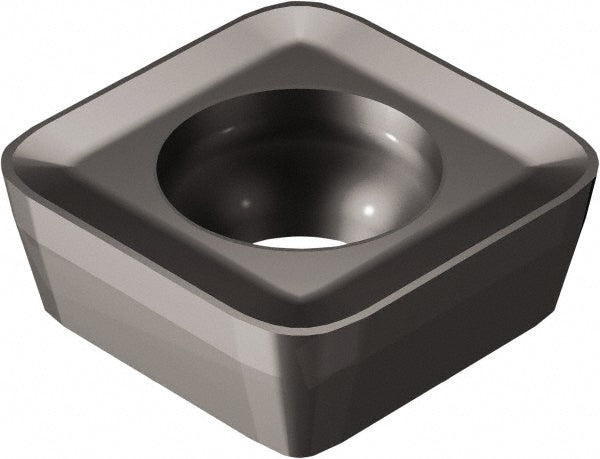

R210-14 05 14E-PM S30T Solid Carbide Insert, Grade S30T, TiAlN - Sandvik Coromant 5853540

Sandvik Coromant

R210-14 05 14E-PM S30T Solid Carbide Insert, Grade S30T, TiAlN - Sandvik Coromant 5853540

MFR# 5853540ISO/ANSI# R210-14 05 14E-PM S30TCat# R210-14 05 14E-PM S30TSeries R210

$31.70List $40.65 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeS30T
MaterialSolid Carbide
CoatingTiAlN

Description

The Sandvik Coromant 5853540 is a R210-14 05 14E-PM S30T solid carbide indexable insert, grade S30T, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi codeR210-14 05 14E-PM S30T
Chip breakerPM
Coating finishTiAlN
Coating processPVD
Corner radius0.0551
Cutter series compatibilityR210
Cutting edge styleCorner Rounded
Hole diameter0.2244
Included angle degree90
Inscribed circle0.5748
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size14
Insert size code140514
Insert styleR210
Iso codeR210-14 05 14E-PM S30T
Length0.5748
Length range0.5000 to 0.6000
Manufacturers catalog numberR210-14 05 14E-PM S30T
Manufacturer gradeS30T
Material applicationStainless Steel; Superalloys & Titanium
Material gradeM25; S25
Maximum depth of cut0.0787
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle10
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2071
Thickness range0.2000 to 0.2200
Width0.5748
