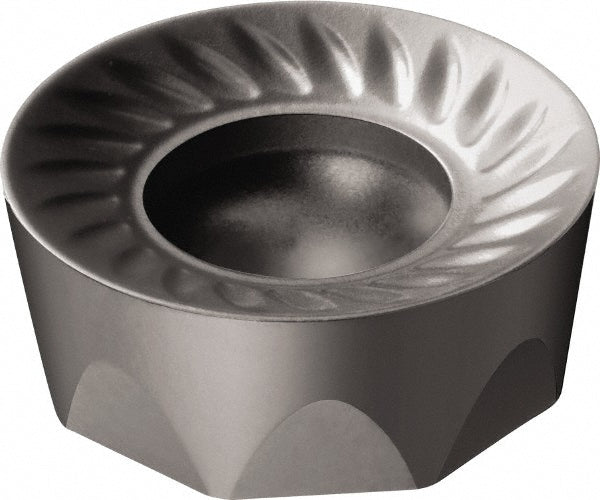

RCKT 16 06 M0-PM S30T Solid Carbide Insert, Grade S30T, TiAlN - Sandvik Coromant 5853548

Sandvik Coromant

RCKT 16 06 M0-PM S30T Solid Carbide Insert, Grade S30T, TiAlN - Sandvik Coromant 5853548

MFR# 5853548ISO/ANSI# RCKT 16 06 M0-PM S30TCat# RCKT 16 06 M0-PM S30TSeries RCKT

$27.07List $34.72 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRound
GradeS30T
MaterialSolid Carbide
CoatingTiAlN

Description

The Sandvik Coromant 5853548 is a RCKT 16 06 M0-PM S30T solid carbide indexable insert, grade S30T, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi codeRCKT 16 06 M0-PM S30T
Chip breakerPM
Coating finishTiAlN
Coating processPVD
Convex radius0.3150
Corner radius0.3150
Cutter series compatibility391.68S; C5-SRDC; C5-SRSC; C6-SRDC; C6-SRSC
Cutting edge styleRounded
Hole diameter0.2165
Included angle degree360
Inscribed circle0.6299
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size16
Insert size code1606M0
Insert styleRCKT
Iso codeRCKT 16 06 M0-PM S30T
Length0.6299
Length range0.6000 to 0.6500
Manufacturers catalog numberRCKT 16 06 M0-PM S30T
Manufacturer gradeS30T
Material applicationStainless Steel; Superalloys & Titanium
Material gradeM25; S25
Maximum depth of cut0.0921
Multi use toolYes
Number of cutting edges8
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Relief angle7.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/4
Thickness range0.2500 to 0.3500
Width0.6299
