Sandvik Coromant

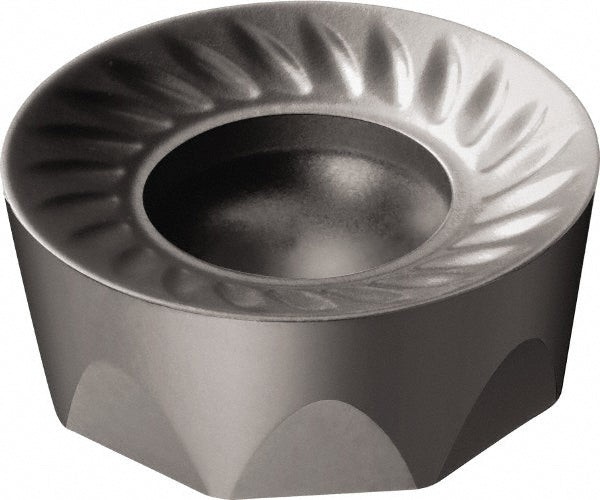

RCKT 19 06 00-PM S30T Solid Carbide Insert, Grade S30T, TiAlN - Sandvik Coromant 5853549
MFR# 5853549ISO/ANSI# RCKT 19 06 00-PM S30TCat# RCKT 19 06 00-PM S30TSeries RCKT
$32.78List $42.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeRound
GradeS30T
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5853549 is a RCKT 19 06 00-PM S30T solid carbide indexable insert, grade S30T, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi codeRCKT 19 06 00-PM S30T
Chip breakerPM
Coating finishTiAlN
Coating processPVD
Convex radius0.3750
Corner radius in3/8
Cutter series compatibilityRA200
Cutting edge styleRounded
Hole diameter0.2559
Included angle degree360
Inscribed circle in3/4
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size19
Insert size code190600
Insert styleRCKT
Iso codeRCKT 19 06 00-PM S30T
Length in3/4
Length range0.7000 to 0.9000
Manufacturers catalog numberRCKT 19 06 00-PM S30T
Manufacturer gradeS30T
Material applicationStainless Steel; Superalloys & Titanium
Material gradeM25; S25
Maximum depth of cut0.1098
Multi use toolYes
Number of cutting edges8
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Relief angle7.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/4
Thickness range0.2500 to 0.3500
Width in3/4
