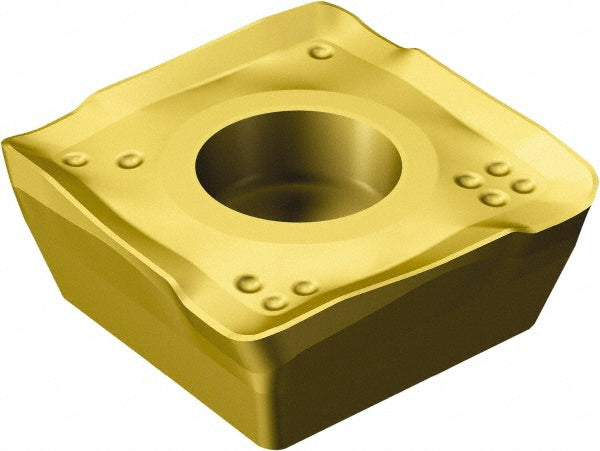

490R-08T308E-MM S40T Solid Carbide Insert, Grade S40T, TiCrN - Sandvik Coromant 5853561

Sandvik Coromant

490R-08T308E-MM S40T Solid Carbide Insert, Grade S40T, TiCrN - Sandvik Coromant 5853561

MFR# 5853561ISO/ANSI# 490R-08T308E-MM S40TCat# 490R-08T308E-MM S40TSeries 490

$34.19List $43.85 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeS40T
MaterialSolid Carbide
CoatingTiCrN

Description

The Sandvik Coromant 5853561 is a 490R-08T308E-MM S40T solid carbide indexable insert, grade S40T, TiCrN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi code490R-08T308E-MM S40T
Chip breakerMM
Coating finishTiCrN
Coating processCVD
Corner radius in1/32
Cutter series compatibility490
Cutting edge styleCorner Rounded
Hole diameter0.1102
Included angle degree90
Inscribed circle0.3346
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size08
Insert size code08T308
Insert style490
Iso code490R-08T308E-MM S40T
Length0.3346
Length range0.3200 to 0.4000
Manufacturers catalog number490R-08T308E-MM S40T
Manufacturer gradeS40T
Material applicationStainless Steel; Superalloys & Titanium
Material gradeM40; S35
Maximum depth of cut0.2165
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle27
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1299
Thickness range0.1250 to 0.1500
Width0.3346
