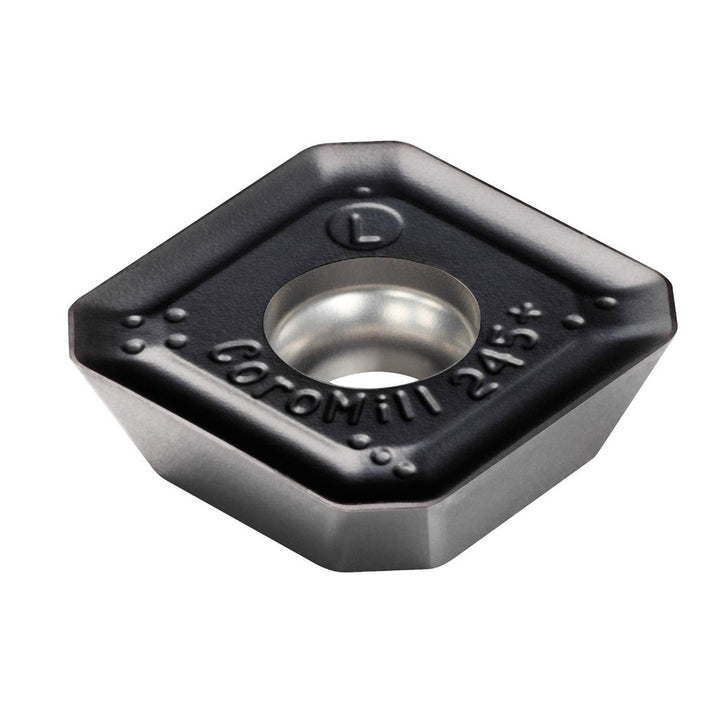

R245-12 T3 E-PL S30T Solid Carbide Insert, Grade S30T, TiAlN - Sandvik Coromant 5853563

Sandvik Coromant

R245-12 T3 E-PL S30T Solid Carbide Insert, Grade S30T, TiAlN - Sandvik Coromant 5853563

MFR# 5853563ISO/ANSI# R245-12 T3 E-PL S30TCat# R245-12 T3 E-PL S30TSeries R245

$27.10List $34.75 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeS30T
MaterialSolid Carbide
CoatingTiAlN

Description

The Sandvik Coromant 5853563 is a R245-12 T3 E-PL S30T solid carbide indexable insert, grade S30T, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi codeR245-12 T3 E-PL S30T
Chip breakerPL
Coating finishTiAlN
Coating processPVD
Corner radius0.0591
Cutter series compatibilityR245
Cutting edge styleCorner Rounded
Hole diameter0.1614
Included angle degree90
Inscribed circle0.5276
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code12T3
Insert styleR245
Iso codeR245-12 T3 E-PL S30T
Length0.5276
Length range0.5000 to 0.6000
Manufacturers catalog numberR245-12 T3 E-PL S30T
Manufacturer gradeS30T
Material applicationStainless Steel; Superalloys & Titanium
Material gradeM25; S25
Maximum depth of cut0.2559
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.5276
