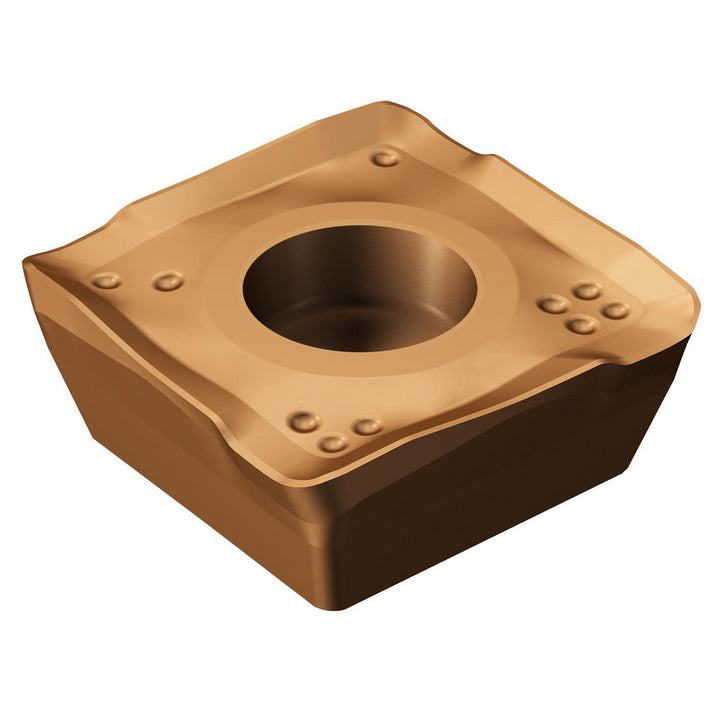

490R-140408M-PM 1020 Solid Carbide Insert, Grade 1020, TiAlN - Sandvik Coromant 5854741

Sandvik Coromant

490R-140408M-PM 1020 Solid Carbide Insert, Grade 1020, TiAlN - Sandvik Coromant 5854741

MFR# 5854741ISO/ANSI# 490R-140408M-PM 1020Cat# 490R-140408M-PM 1020Series 490

$28.04List $35.96 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
Grade1020
MaterialSolid Carbide
CoatingTiAlN

Description

The Sandvik Coromant 5854741 is a 490R-140408M-PM 1020 solid carbide indexable insert, grade 1020, TiAlN coated. Suited for cast iron.

Specifications

Ansi code490R-140408M-PM 1020
Chip breakerPM
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibility490
Cutting edge styleCorner Rounded
Hole diameter0.1614
Included angle degree90
Inscribed circle0.5433
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size14
Insert size code140408
Insert style490
Iso code490R-140408M-PM 1020
Length0.5433
Length range0.5000 to 0.6000
Manufacturers catalog number490R-140408M-PM 1020
Manufacturer grade1020
Material applicationCast Iron
Material gradeK05
Maximum depth of cut0.3937
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakePositive
Rake angle23
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1535
Thickness range0.1500 to 0.1750
Width0.5433
