490R-140408M-PM 3220 Solid Carbide Insert, Grade 3220, TiCN - Sandvik Coromant 5854742

Sandvik Coromant

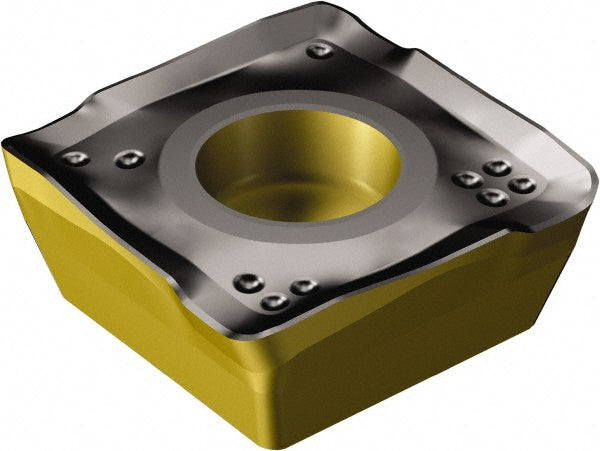

490R-140408M-PM 3220 Solid Carbide Insert, Grade 3220, TiCN - Sandvik Coromant 5854742

MFR# 5854742ISO/ANSI# 490R-140408M-PM 3220Cat# 490R-140408M-PM 3220Series 490

$28.04List $35.96 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
Grade3220
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 5854742 is a 490R-140408M-PM 3220 solid carbide indexable insert, grade 3220, TiCN coated. Suited for cast iron.

Specifications

Ansi code490R-140408M-PM 3220
Chip breakerPM
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibility490
Cutting edge styleCorner Rounded
Hole diameter0.1614
Included angle degree90
Inscribed circle0.5433
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size14
Insert size code140408
Insert style490
Iso code490R-140408M-PM 3220
Length0.5433
Length range0.5000 to 0.6000
Manufacturers catalog number490R-140408M-PM 3220
Manufacturer grade3220
Material applicationCast Iron
Material gradeK15
Maximum depth of cut0.3937
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakePositive
Rake angle23
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1535
Thickness range0.1500 to 0.1750
Width0.5433
