Sandvik Coromant

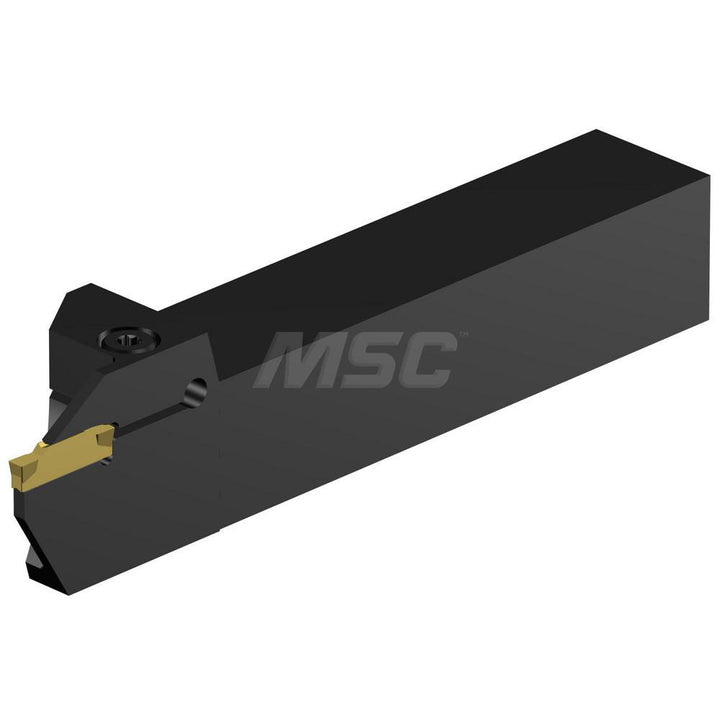

Indexable Grooving - Sandvik Coromant 5856801
MFR# 5856801Series Coro Cut 1-2
$257.20List $270.00
Save 4%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5856801 indexable grooving. Series Coro Cut 1-2.
Specifications
Back of bar to cutting edge5.0000
Compatible insert size codeN123G2
Complete insert compatibilityN123G2 0300-0003-TF
Coolant throughNo
Cutting directionRight Hand
Hand of holderRight Hand
Insert compatibilityN123G2-0300-0003-TF
Insert holding methodClamp
Insert seat sizeG
Internal or externalInternal or External
Manufacturers catalog number5856801
Maximum depth of cut0.8700
Maximum overhang in1.6968
Maximum workpiece diameter1.7402
Multi use toolYes
Overall length in5
Shank diameter1.0000
Shank height1.0000
Shank width1.0000
Toolholder materialSteel
Toolholder styleF123
Toolholder typeNon-Face Grooving
