Sandvik Coromant
3/8" IC Solid Carbide Insert, Grade 1135, TiCrAlN/TiN - Sandvik Coromant 5857577
MFR# 5857577Cat# 266RG-16UN01F140E 1135Series CoroThread 266
$39.08List $50.11
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
Grade1135
MaterialSolid Carbide
CoatingTiCrAlN/TiN
Description

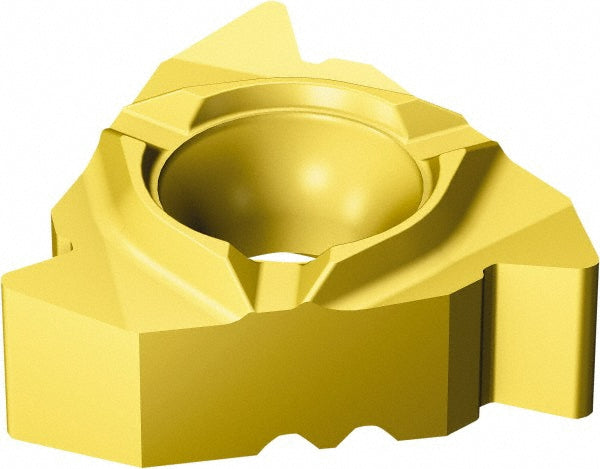

The Sandvik Coromant 5857577 is a solid carbide indexable insert, grade 1135, TiCrAlN/TiN coated.
Specifications
ChipbreakerF
Coating finishTiCrAlN/TiN
Coating processPVD
Hole diameter0.1732
Included angle60
Inscribed circle in3/8
Insert handRight Hand
Insert materialSolid Carbide
Insert size code16
Insert style266
Manufacturers catalog number266RG-16UN01F140E 1135
Manufacturer grade1135
Number of teeth per side1
Thickness in5/32
Threads per inch14
Thread standardUN
Thread typeExternal
