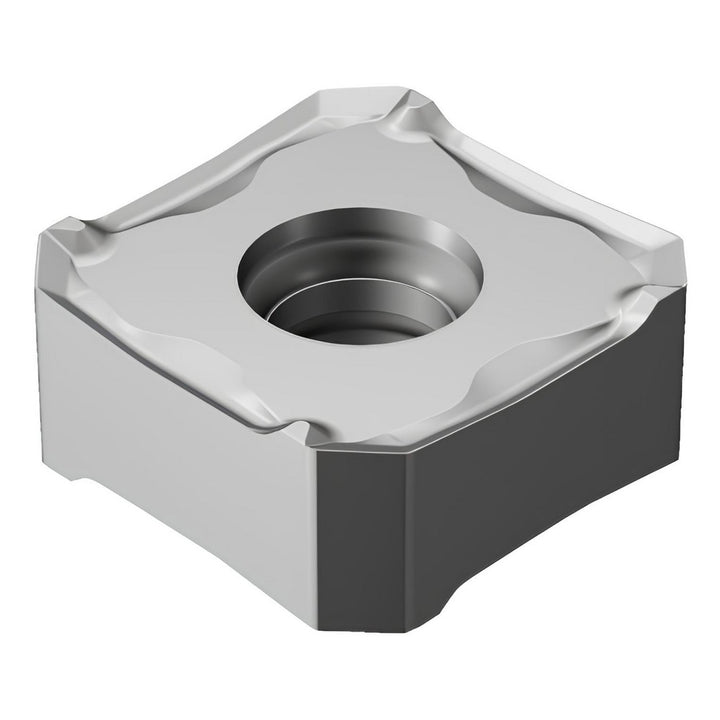

345R-1305E-KL H13A Solid Carbide Insert, Grade H13A - Sandvik Coromant 5861257

Sandvik Coromant

345R-1305E-KL H13A Solid Carbide Insert, Grade H13A - Sandvik Coromant 5861257

MFR# 5861257ISO/ANSI# 345R-1305E-KL H13ACat# 345R-1305E-KL H13ASeries 345

$25.18List $32.29 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeH13A
MaterialSolid Carbide

Description

The Sandvik Coromant 5861257 is a 345R-1305E-KL H13A solid carbide indexable insert, grade H13A. Suited for cast iron.

Specifications

Ansi code345R-1305E-KL H13A
Chip breakerKL
Coating processUncoated
Corner radius in1/32
Cutter series compatibility345
Cutting edge styleCorner Rounded
Hole diameter0.1890
Included angle degree90
Inscribed circle0.5118
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size13
Insert size code1305
Insert style345
Iso code345R-1305E-KL H13A
Length0.5118
Length range0.5000 to 0.6000
Manufacturers catalog number345R-1305E-KL H13A
Manufacturer gradeH13A
Material applicationCast Iron
Material gradeK20; N15; S20
Maximum depth of cut0.2362
Multi use toolYes
Number of cutting edges8
Primary workpiece materialCast Iron
RakeNegative
Rake angle30
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1988
Thickness range0.1850 to 0.2000
Width0.5118
