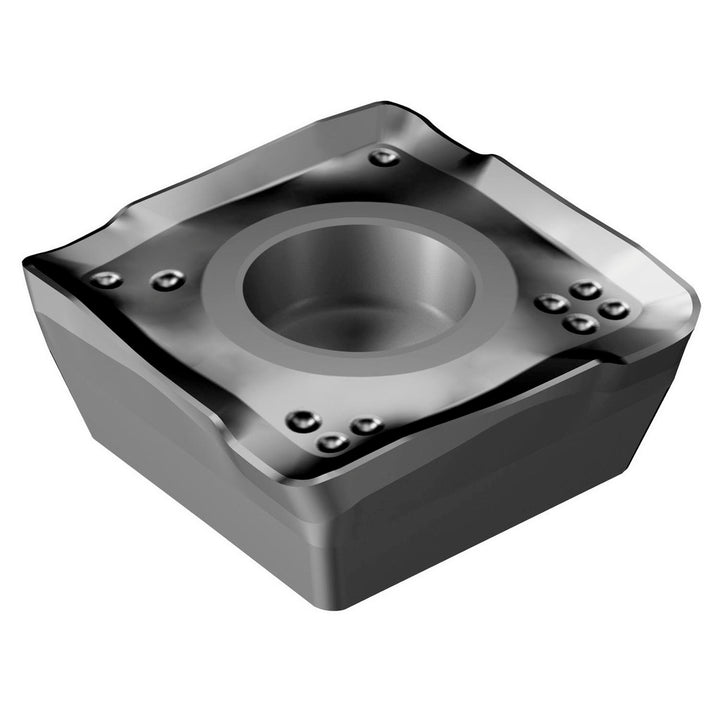

490R-08T308E-MM 1040 Solid Carbide Insert, Grade 1040, TiAlN - Sandvik Coromant 5888487

Sandvik Coromant

490R-08T308E-MM 1040 Solid Carbide Insert, Grade 1040, TiAlN - Sandvik Coromant 5888487

MFR# 5888487ISO/ANSI# 490R-08T308E-MM 1040Cat# 490R-08T308E-MM 1040Series 490

$34.19List $43.85 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
Grade1040
MaterialSolid Carbide
CoatingTiAlN

Description

The Sandvik Coromant 5888487 is a 490R-08T308E-MM 1040 solid carbide indexable insert, grade 1040, TiAlN coated. Suited for steel, stainless steel.

Specifications

Ansi code490R-08T308E-MM 1040
Chip breakerMM
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibility490
Cutting edge styleCorner Rounded
Hole diameter0.1102
Included angle degree90
Inscribed circle0.3346
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size08
Insert size code08T308
Insert style490
Iso code490R-08T308E-MM 1040
Length0.3346
Length range0.3200 to 0.4000
Manufacturers catalog number490R-08T308E-MM 1040
Manufacturer grade1040
Material applicationSteel; Stainless Steel
Material gradeM30
Maximum depth of cut0.2165
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakePositive
Rake angle27
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1299
Thickness range0.1250 to 0.1500
Width0.3346
