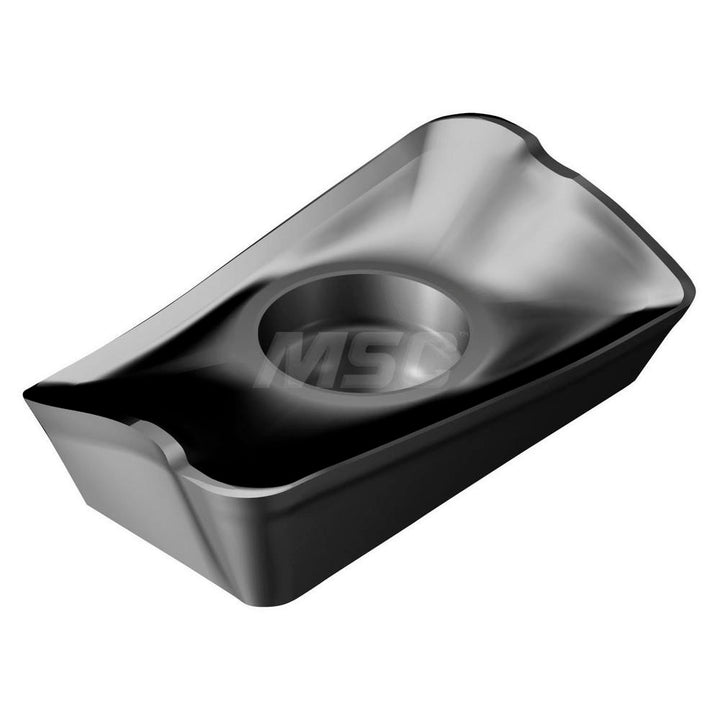

R390-11 T3 02E-MM 1040 Solid Carbide Insert, Grade 1040, TiAlN - Sandvik Coromant 5888532

Sandvik Coromant

R390-11 T3 02E-MM 1040 Solid Carbide Insert, Grade 1040, TiAlN - Sandvik Coromant 5888532

MFR# 5888532ISO/ANSI# R390-11 T3 02E-MM 1040Cat# R390-11 T3 02E-MM 1040Series R390

$31.96List $40.99 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
Grade1040
MaterialSolid Carbide
CoatingTiAlN

Description

The Sandvik Coromant 5888532 is a R390-11 T3 02E-MM 1040 solid carbide indexable insert, grade 1040, TiAlN coated. Suited for steel, stainless steel.

Specifications

Ansi codeR390-11 T3 02E-MM 1040
Chip breakerMM
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Cutter series compatibilityM-32; R390
Cutting edge styleCorner Rounded
Hole diameter0.1102
Included angle degree90
Inscribed circle0.2677
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size11
Insert size code11T302
Insert styleR390
Iso codeR390-11 T3 02E-MM 1040
Length0.3937
Length range0.3200 to 0.4000
Manufacturers catalog numberR390-11 T3 02E-MM 1040
Manufacturer grade1040
Material applicationSteel; Stainless Steel
Material gradeM30
Maximum depth of cut0.3937
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Rake angle25
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1413
Thickness range0.1250 to 0.1500
Width0.2677
