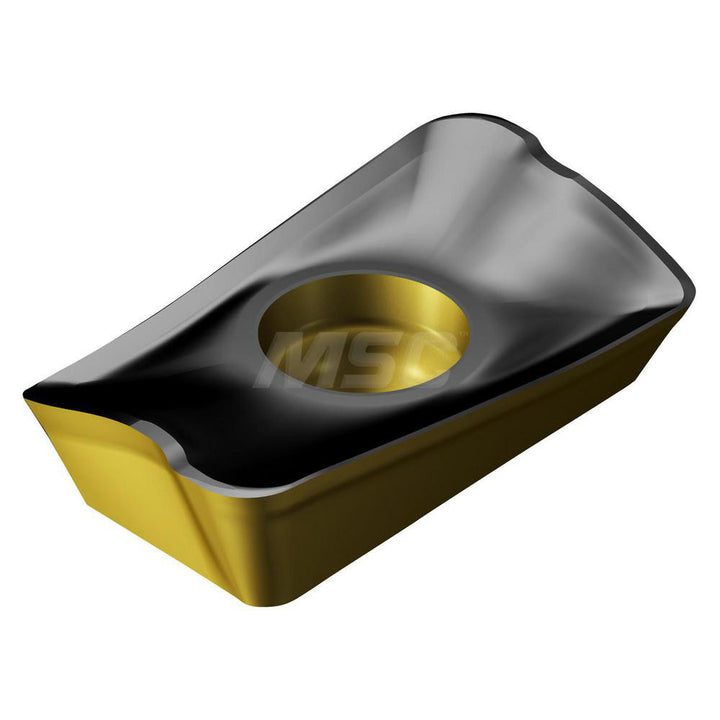

R390-17 04 08M-MM 1040 Solid Carbide Insert, Grade 1040, TiAlN - Sandvik Coromant 5888546

Sandvik Coromant

R390-17 04 08M-MM 1040 Solid Carbide Insert, Grade 1040, TiAlN - Sandvik Coromant 5888546

MFR# 5888546ISO/ANSI# R390-17 04 08M-MM 1040Cat# R390-17 04 08M-MM 1040Series R390

$26.70List $34.25 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
Grade1040
MaterialSolid Carbide
CoatingTiAlN

Description

The Sandvik Coromant 5888546 is a R390-17 04 08M-MM 1040 solid carbide indexable insert, grade 1040, TiAlN coated. Suited for steel, stainless steel.

Specifications

Ansi codeR390-17 04 08M-MM 1040
Chip breakerMM
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityR390
Cutting edge styleCorner Rounded
Hole diameter0.1614
Included angle degree90
Inscribed circle0.3780
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size17
Insert size code170408
Insert styleR390
Iso codeR390-17 04 08M-MM 1040
Length0.6181
Length range0.6000 to 0.6500
Manufacturers catalog numberR390-17 04 08M-MM 1040
Manufacturer grade1040
Material applicationSteel; Stainless Steel
Material gradeM30
Maximum depth of cut0.6181
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Rake angle22
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.3780
