Sandvik Coromant

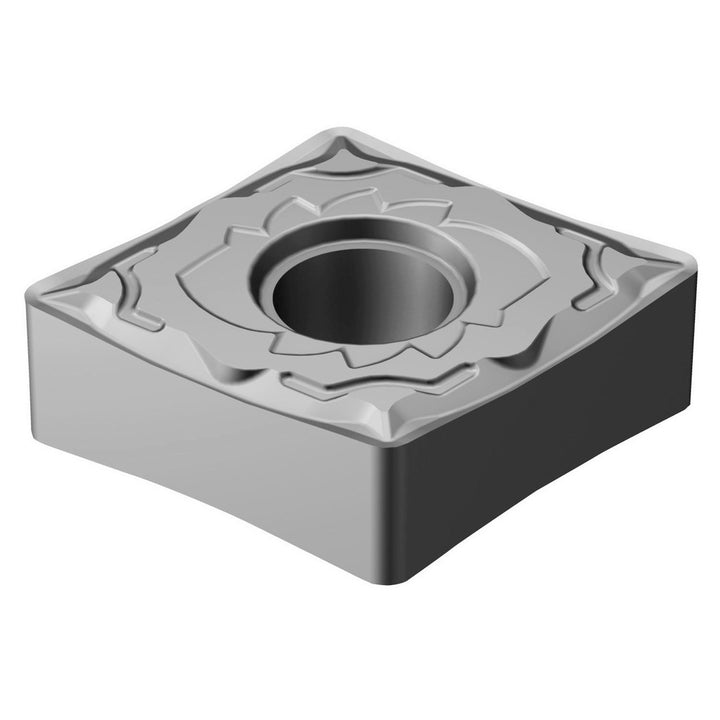

CNMG120408SFH13A Carbide Insert, Grade H13A - Sandvik Coromant 5891389
MFR# 5891389ISO/ANSI# CNMG120408Series T-Max P
$14.10List $18.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5891389 is a CNMG120408SFH13A carbide indexable insert, grade H13A. Suited for stainless steel.
Specifications
Ansi insert codeCNMG432
Ansi size code432
Chip breakerSF
Chip breaker operationFinishing
Clearance codeN
Corner radius in1/32
Grade characteristicsCast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and T
Hole diameter0.2032
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408SFH13A
Iso insert codeCNMG120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturers catalog number5891389
Manufacturer gradeH13A
Maximum depth of cut0.3346
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
