Sandvik Coromant

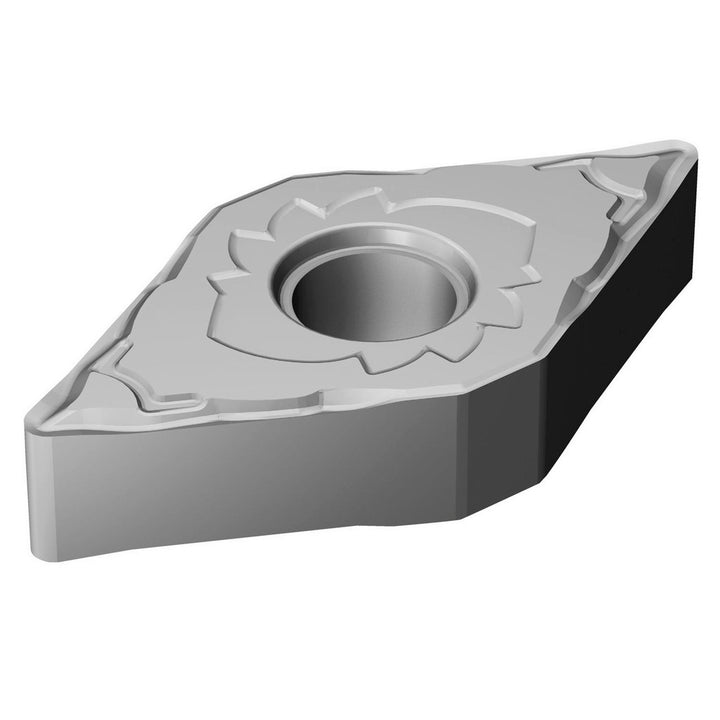

DNMG150404SFH13A Carbide Insert, Grade H13A - Sandvik Coromant 5891396
MFR# 5891396ISO/ANSI# DNMG150404SFH13ASeries T-Max P
$17.81List $22.84
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5891396 is a DNMG150404SFH13A carbide indexable insert, grade H13A. Suited for stainless steel.
Specifications
Chip breakerSF
Clearance codeN
Corner radius in1/64
Hole diameter0.2032
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialCarbide
Insert shapeDiamond
Insert size code431
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150404SFH13A
Length range0.6000 - 0.6500
Manufacturers catalog number5891396
Manufacturer gradeH13A
Maximum depth of cut0.2520
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
