Sandvik Coromant

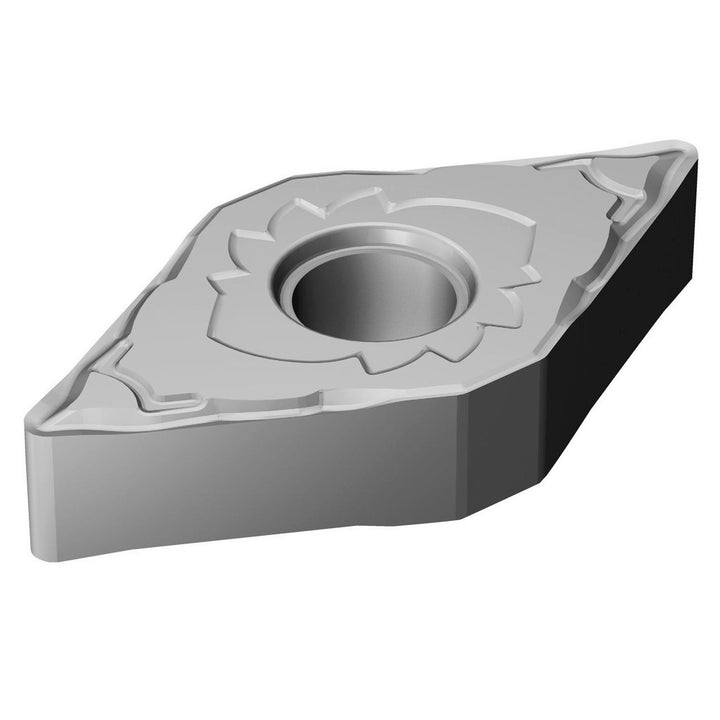

DNMG150412-SF H13A Carbide Insert, Grade H13A - Sandvik Coromant 5891402
MFR# 5891402ISO/ANSI# DNMG150412-SF H13ASeries T-Max P
$17.81List $22.84
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5891402 is a DNMG150412-SF H13A carbide indexable insert, grade H13A. Suited for stainless steel.
Specifications
Chip breakerSF
Clearance codeN
Corner radius in3/64
Cutting edge styleRounded
Hole diameter0.2030
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeDiamond
Insert size code433
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150412-SF H13A
Manufacturer gradeH13A
Maximum depth of cut (mm)6.40
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
