Sandvik Coromant

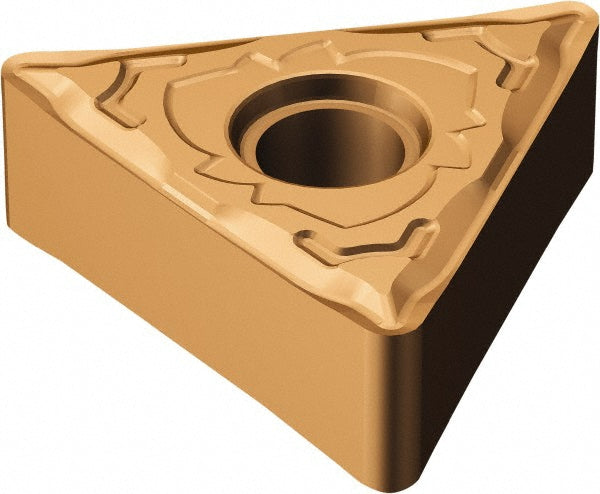

TNMG160404-SF 1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5891413
MFR# 5891413ISO/ANSI# TNMG160404-SF 1115
$15.33List $19.66
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade1115
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5891413 is a TNMG160404-SF 1115 carbide indexable insert, grade 1115, TiAlN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiAlN
Corner radius in1/64
Hole diameter0.1500
Included angle60
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.1890
Insert materialCarbide
Insert shapeTriangle
Insert size code331
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG160404-SF 1115
Length range0.0000 - 0.3000
Manufacturer grade1115
Relief angle0
Tolerance codeM
