Sandvik Coromant

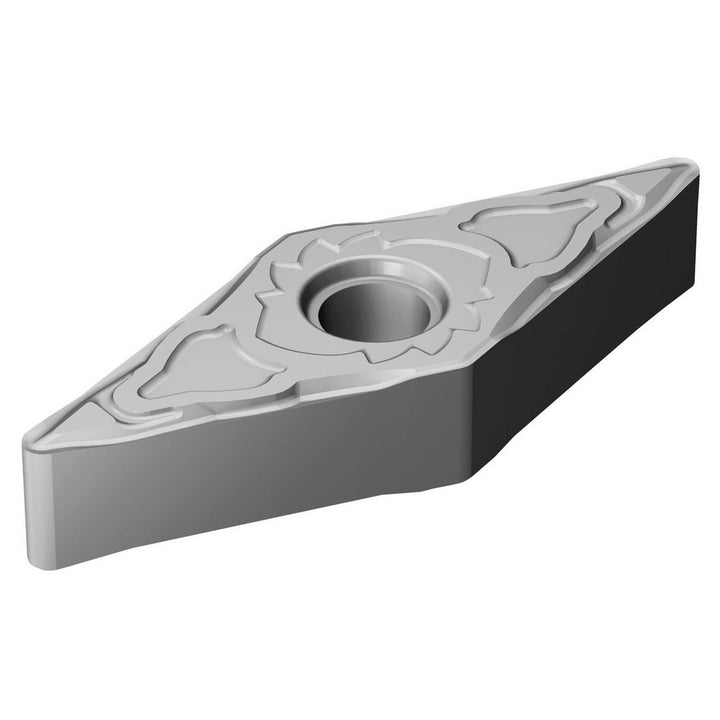

VNMG160404SFH13A Carbide Insert, Grade H13A - Sandvik Coromant 5891434
MFR# 5891434ISO/ANSI# VNMG160404Series T-Max P
$25.81List $33.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5891434 is a VNMG160404SFH13A carbide indexable insert, grade H13A. Suited for stainless steel.
Specifications
Ansi insert codeVNMG331
Ansi size code331
Chip breakerSF
Chip breaker operationFinishing
Clearance codeN
Corner radius in1/64
Grade characteristicsCast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and T
Hole diameter0.1500
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6539
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160404SFH13A
Iso insert codeVNMG160404
Iso size code160404
Length range0.6500 - 0.7000
Manufacturers catalog number5891434
Manufacturer gradeH13A
Maximum depth of cut0.0945
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
