Sandvik Coromant

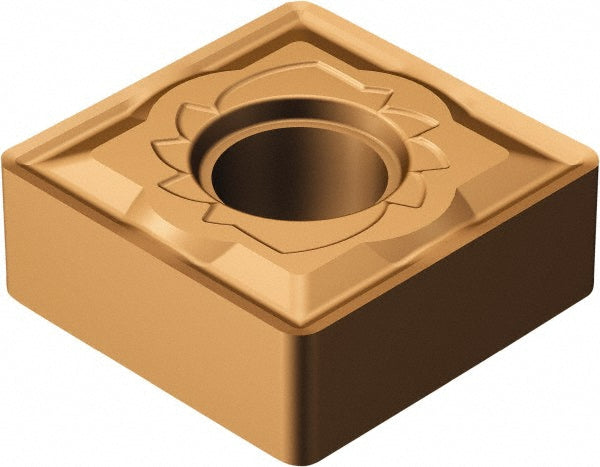

SNMG 15 06 12-SM 1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5906824
MFR# 5906824ISO/ANSI# SNMG 15 06 12-SM 1115Series T-Max P
$30.74List $39.42
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeSquare
Grade1115
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5906824 is a SNMG 15 06 12-SM 1115 carbide indexable insert, grade 1115, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerSM
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Hole diameter0.2500
Included angle90
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in5/8
Insert materialCarbide
Insert shapeSquare
Insert size code543
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG 15 06 12-SM 1115
Length range0.4000 - 0.5000
Manufacturer grade1115
Number of cutting edges8
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
