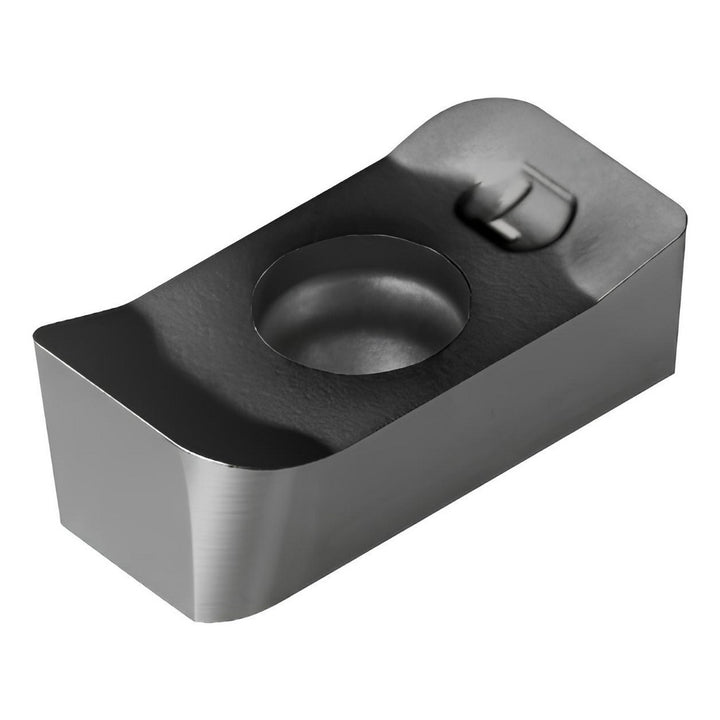

L331.1A-08 45 15H-WL1040 Solid Carbide Insert, Grade 1040, TiAlN - Sandvik Coromant 5907087

Sandvik Coromant

L331.1A-08 45 15H-WL1040 Solid Carbide Insert, Grade 1040, TiAlN - Sandvik Coromant 5907087

MFR# 5907087ISO/ANSI# L331.1A-08 45 15H-WL1040Cat# L331.1A-08 45 15H-WL1040Series L331.1A

$25.76List $33.04 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
Grade1040
MaterialSolid Carbide
CoatingTiAlN

Description

The Sandvik Coromant 5907087 is a L331.1A-08 45 15H-WL1040 solid carbide indexable insert, grade 1040, TiAlN coated. Suited for steel, stainless steel.

Specifications

Ansi codeL331.1A-08 45 15H-WL1040
Chip breakerWL
Coating finishTiAlN
Coating processPVD
Corner radius0.0598
Cutter series compatibilityL331.52C
Cutting edge styleCorner Rounded
Hole diameter0.1417
Included angle degree90
Inscribed circle0.3150
Inscribed circle range0.3000 to 0.3500
Insert handLeft Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size08
Insert size code084515
Insert styleL331.1A
Iso codeL331.1A-08 45 15H-WL1040
Length0.3031
Length range0.0000 to 0.3200
Manufacturers catalog numberL331.1A-08 45 15H-WL1040
Manufacturer grade1040
Material applicationSteel; Stainless Steel
Material gradeM30
Maximum depth of cut0.3031
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1772
Thickness range0.1750 to 0.1850
Width0.3740
