Sandvik Coromant

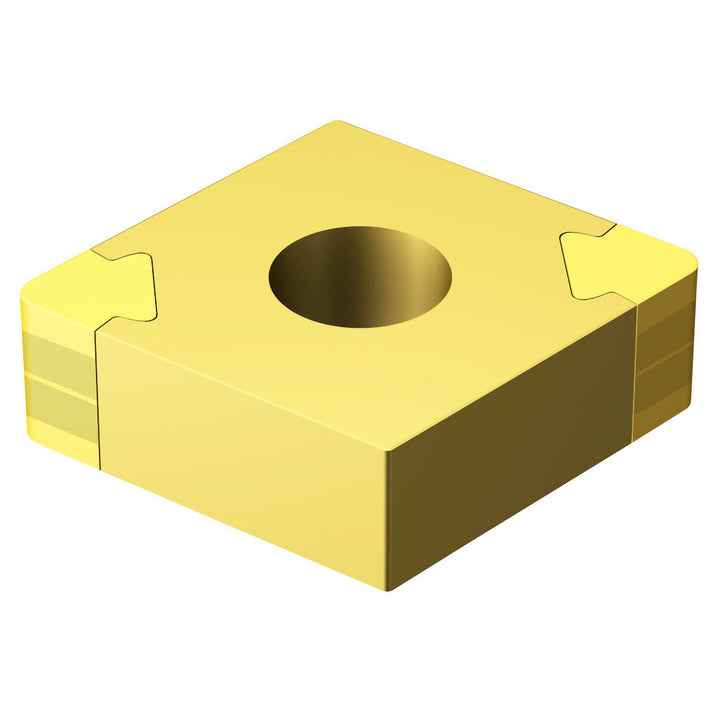

CNGA120408T01020B 7525 Carbide Insert, Grade 7525, TiN - Sandvik Coromant 5908112
MFR# 5908112ISO/ANSI# CNGA120408T01020B 7525Series T-Max P
$175.15List $224.64
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade7525
MaterialCarbide
CoatingTiN
Description
The Sandvik Coromant 5908112 is a CNGA120408T01020B 7525 carbide indexable insert, grade 7525, TiN coated. Suited for cast iron.
Specifications
Chip breakerA
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/32
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.0827
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleCNGA
Insert thickness in3/16
Iso codeCNGA120408T01020B 7525
Length range0.0000 - 0.3000
Manufacturer grade7525
Number of cutting edges4
Primary workpiece materialCast Iron
Relief angle0
Secondary workpiece materialHard Material
Tolerance codeG
Wiper edgeNo
