Sandvik Coromant

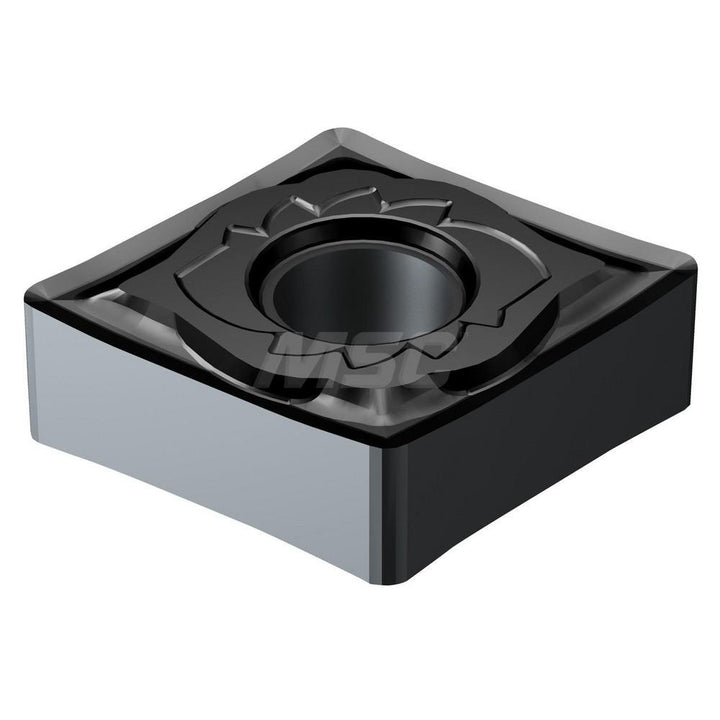

CNGG120412-SGF 1105 Carbide Insert, Grade 1105, TiAlN - Sandvik Coromant 5908965
MFR# 5908965ISO/ANSI# CNGG120412-SGF 1105Series T-Max P
$22.53List $28.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade1105
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5908965 is a CNGG120412-SGF 1105 carbide indexable insert, grade 1105, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerSGF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3346
Insert materialCarbide
Insert shapeDiamond
Insert size code433
Insert styleCNGG
Insert thickness in3/16
Iso codeCNGG120412-SGF 1105
Length range0.3000 - 0.4000
Manufacturer grade1105
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeG
Wiper edgeNo
