Sandvik Coromant

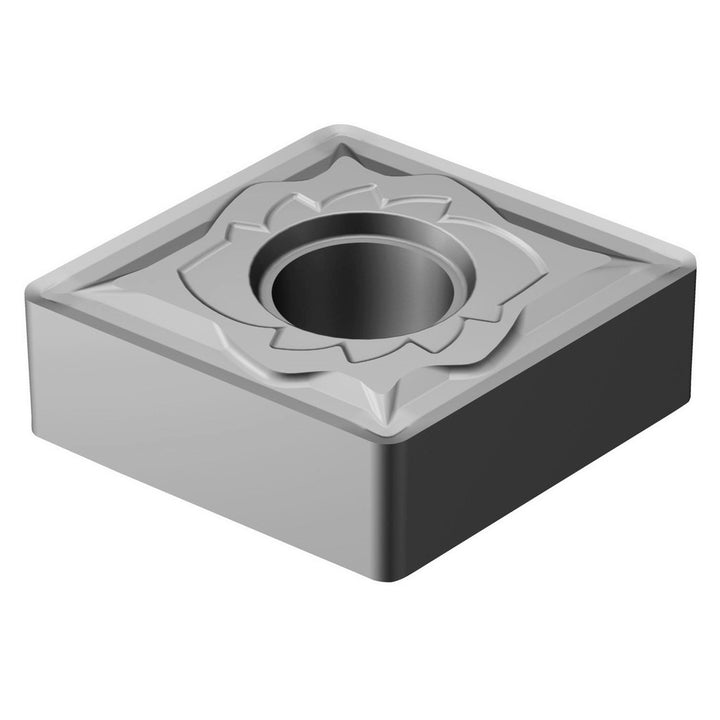

CNMG120412SMRH13A Carbide Insert, Grade H13A - Sandvik Coromant 5908981
MFR# 5908981ISO/ANSI# CNMG120412SMRH13ASeries T-Max P
$14.10List $18.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5908981 is a CNMG120412SMRH13A carbide indexable insert, grade H13A. Suited for stainless steel.
Specifications
Chip breakerSMR
Clearance codeN
Corner radius in3/64
Hole diameter0.2032
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialCarbide
Insert shapeDiamond
Insert size code433
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120412SMRH13A
Length range0.5000 - 0.6000
Manufacturers catalog number5908981
Manufacturer gradeH13A
Maximum depth of cut0.3346
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
