Sandvik Coromant

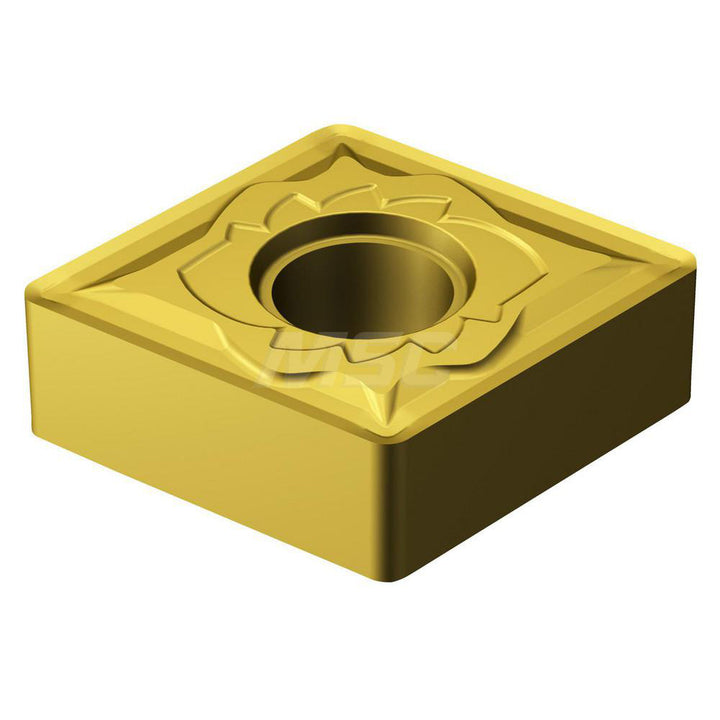

CNMG120416-SMR S05F Carbide Insert, Grade S05F, TiCN - Sandvik Coromant 5908985
MFR# 5908985ISO/ANSI# CNMG120416-SMR S05FSeries T-Max P
$18.87List $24.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeS05F
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5908985 is a CNMG120416-SMR S05F carbide indexable insert, grade S05F, TiCN coated. Suited for superalloy, titanium.
Specifications
Chip breakerSMR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3346
Insert materialCarbide
Insert shapeDiamond
Insert size code434
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120416-SMR S05F
Length range0.3000 - 0.4000
Manufacturer gradeS05F
Number of cutting edges4
Primary workpiece materialSuperalloy; Titanium
Relief angle0
Tolerance codeM
Wiper edgeNo
