Sandvik Coromant

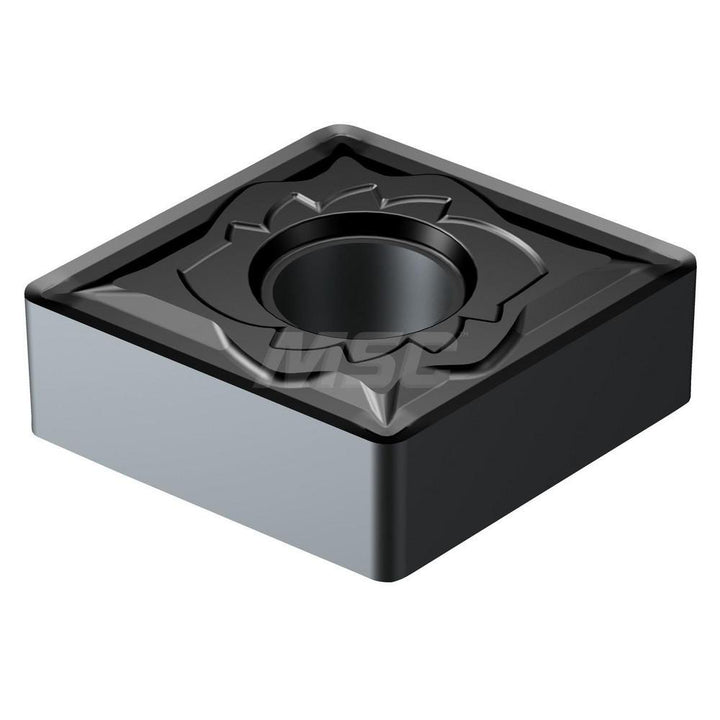

CNMG160616-SMR 1105 Carbide Insert, Grade 1105, TiAlN - Sandvik Coromant 5908987
MFR# 5908987ISO/ANSI# CNMG160616-SMR 1105Series T-Max P
$30.74List $39.42
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond
Grade1105
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5908987 is a CNMG160616-SMR 1105 carbide indexable insert, grade 1105, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerSMR
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/16
Hole diameter0.2500
Included angle80
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.4173
Insert materialCarbide
Insert shapeDiamond
Insert size code544
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG160616-SMR 1105
Length range0.4000 - 0.5000
Manufacturer grade1105
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
