Sandvik Coromant

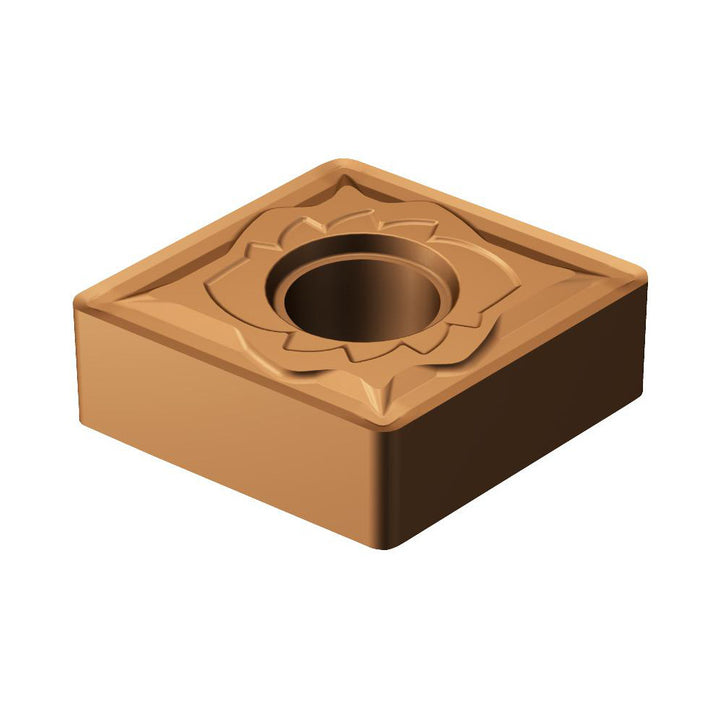

CNMG160616SMR1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5908989
MFR# 5908989ISO/ANSI# CNMG160616Series T-Max P
$30.74List $39.42
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeC - Diamond (Rhombic) 80-Deg
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5908989 is a CNMG160616SMR1125 carbide indexable insert, grade 1125, TiAlN coated.
Specifications
Ansi insert codeCNMG544
Ansi size code544
Chip breakerSMR
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/16
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness
Hole diameter0.2500
Included angle80
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6346
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code544
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG160616SMR1125
Iso insert codeCNMG160616
Iso size code160616
Length range0.6000 - 0.6500
Manufacturers catalog number5908989
Manufacturer grade1125
Maximum depth of cut0.4173
Relief angle0
Side clearanceNegative
Tolerance codeM
